What is a Standardized Edge Protection Fence?
Manufactured by ABX Metaal, the standardized edge protection fence is an essential safety barricade engineered to prevent accidental falls and secure hazardous zones during excavation and construction operations. Primarily deployed around deep excavation pits, foundation trenches, elevator shafts, and temporary roadworks, these high-visibility guardrails provide rigid physical isolation, ensuring full compliance with international occupational safety regulations.
Comprehensive Product Specifications
| Specification Item | Technical Details |
|---|---|
| Manufacturer/Brand | ABX Metaal |
| Base Material | Premium Galvanized Steel (Zinc Steel) |
| Standard Dimensions (H x W) | 1.2m × 2.0m / 1.5m × 2.0m |
| Oppervlaktebehandeling | Electrostatic Powder Coating |

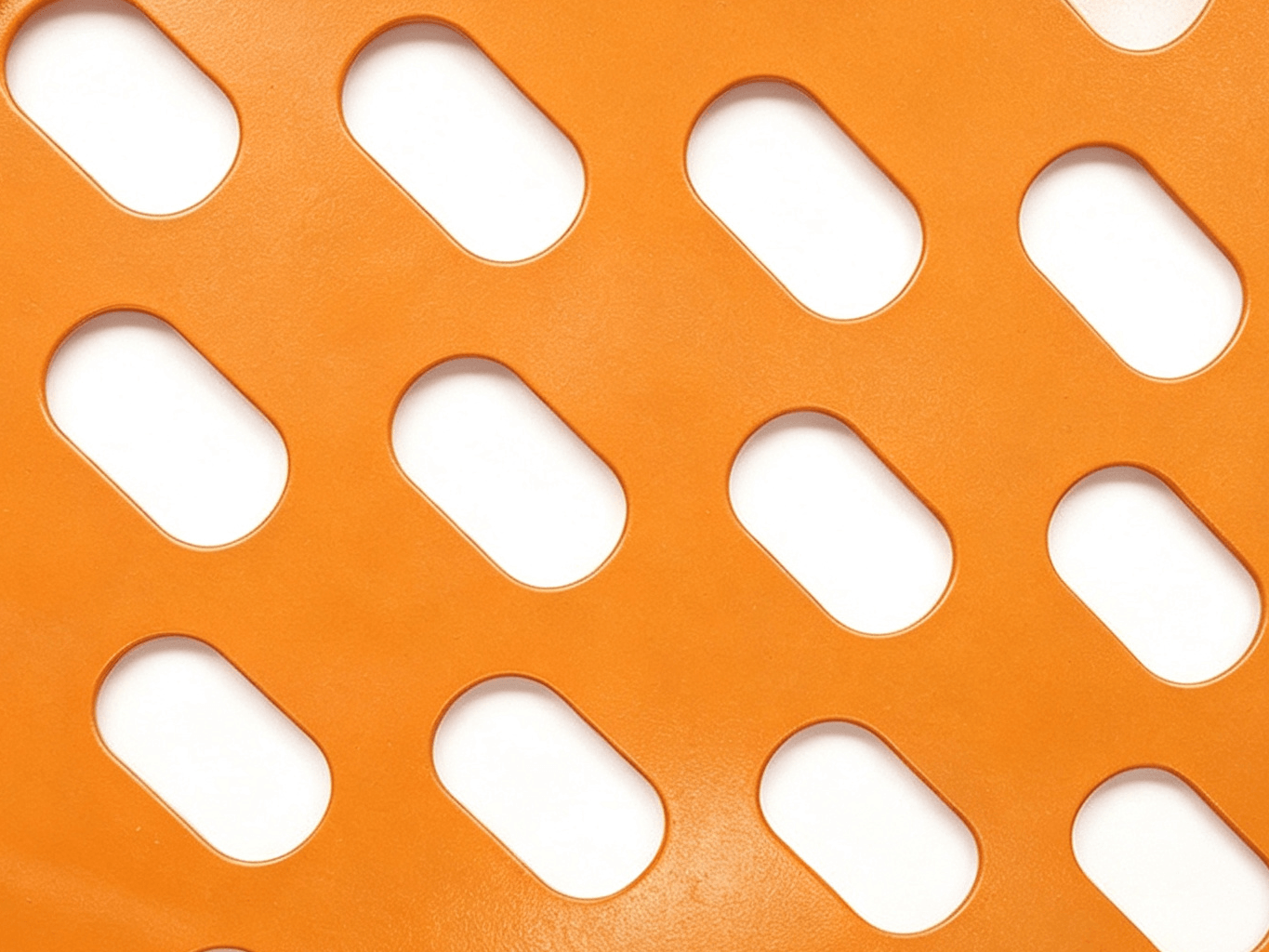

| Panel Configurations | Welded Wire Mesh, Vertical Railing, Punched Hole Plate, Closed Solid Plate |
| Safety Color Codes | Red & White / Yellow & Black (Custom colors available) |
| Steel Frame Thickness | 6 mm |
| Support Post Diameter | Φ 20 mm |
| Post Wall Thickness | 0.6 mm |
| Application Suitability | Foundation Pit Isolation, Excavation Edge Protection, Road Safety |
| Supply Capacity & OEM | Wholesale available; Custom dimensions, colors, and warning signs supported. |

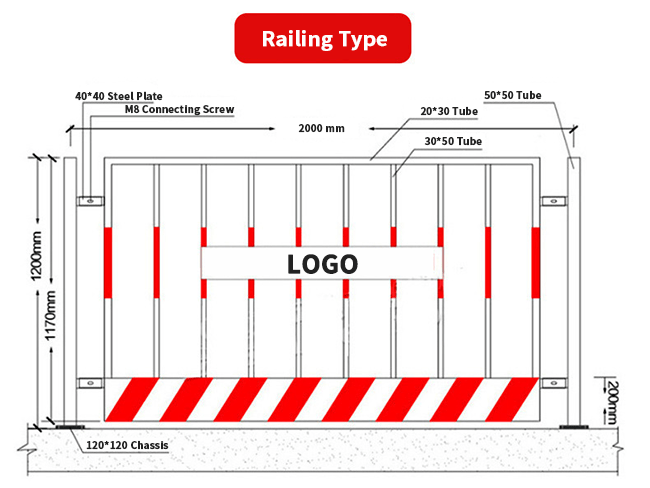

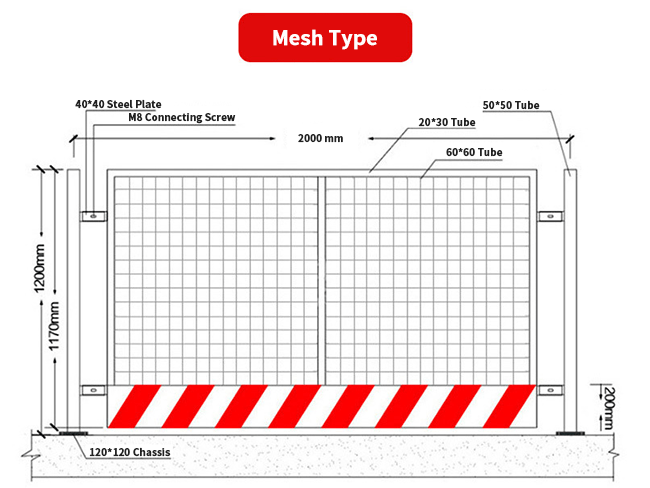

Dimension of Excavation Pit Barrier
Key Advantages of ABX Metal Safety Barriers

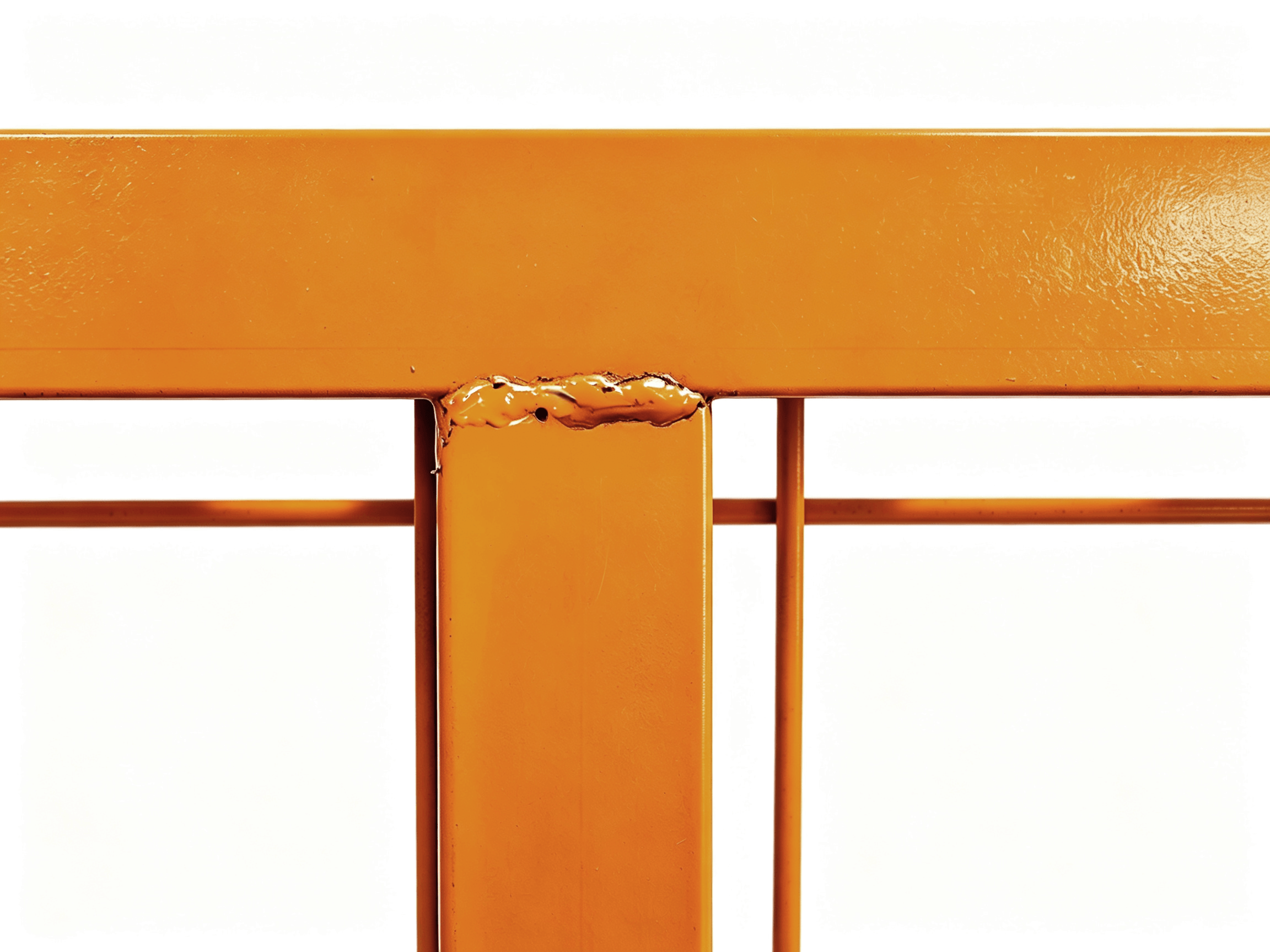

01 PRECISION WELDING
- The outer frame square tubes feature 45-degree angle precision welding, ensuring robust stability and a sleek, aesthetic appearance.
02 ELECTROSTATIC POWDER COATING
- The surface is treated with an advanced electrostatic powder coating process. This provides bright, pure colors that resist fading and easily withstand prolonged exposure to harsh sun and rain.

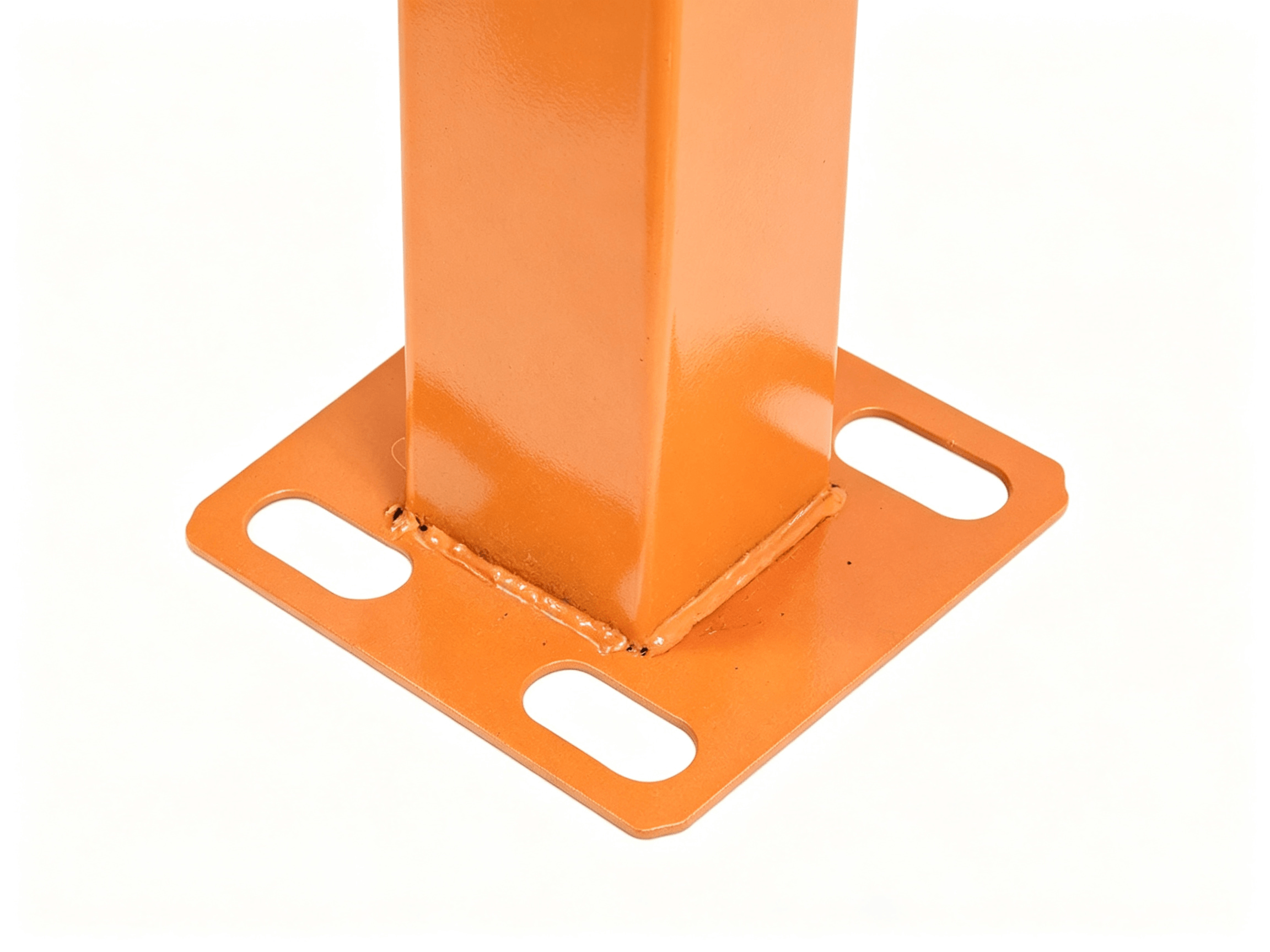

03 REINFORCED BASE PLATE
- Equipped with a reinforced base plate and secured with heavy-duty expansion screws, offering enhanced structural stability and preventing unwanted shifting.
04 PREMIUM SELECTED MATERIALS
- Constructed from strictly selected premium materials, delivering exceptional load-bearing capacity while maintaining an excellent overall visual appeal.
Versatile Construction & Excavation Applications
Our heavy-duty edge protection barriers are universally adaptable for various B2B engineering and earthmoving projects:
Deep excavation pit and foundation trench perimeter isolation.
Temporary municipal road construction, utility trenching, and pipe-laying barricades.
Elevator shaft and multi-story building drop-off protection.
Industrial manufacturing facility hazard zone partitioning.
Frequently Asked Questions (FAQ)
Why is edge protection critical during the excavation phase of construction?
During excavation, the ground surrounding the pit or trench becomes highly unstable, presenting a severe risk of falls and soil cave-ins. ABX Metal’s edge protection fences provide a rigid, highly visible physical barrier that prevents workers, tools, and light machinery from falling into the excavation pit, keeping your project compliant with safety standards.
Can ABX Metal excavation safety fences withstand high temperatures and UV exposure?
Yes. All our safety barriers undergo a high-temperature electrostatic powder coating process over galvanized steel. This dual-layer protection ensures they remain rust-free and do not fade under extreme sun exposure, making them ideal for Middle Eastern and global climates.
How are the excavation pit safety fences installed?

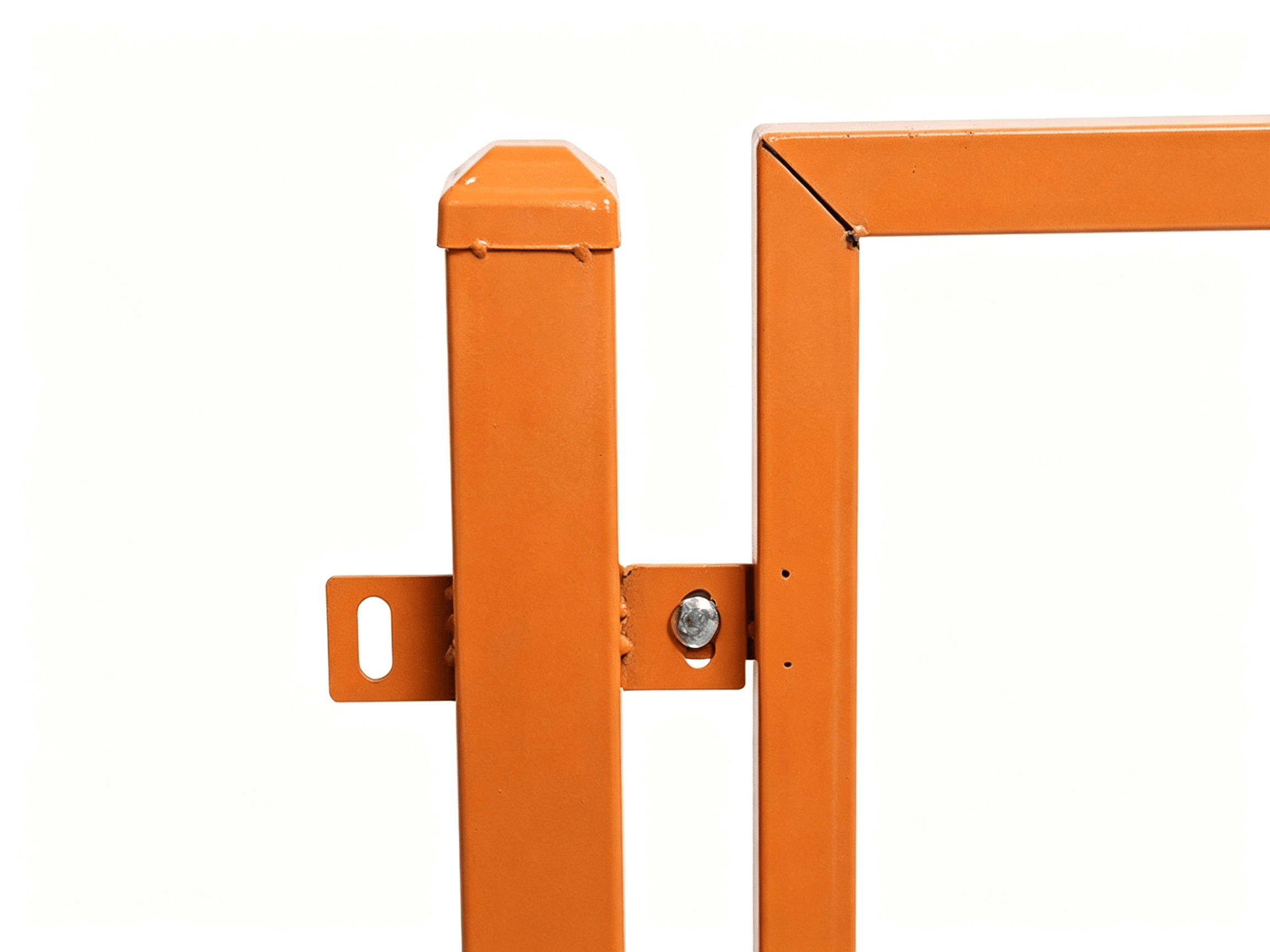

The panels feature a standardized modular design with pre-welded connectors. They can be quickly bolted or dropped into base plates (either surface-mounted or embedded in the ground around the excavation site), ensuring rapid deployment and easy breakdown for reuse on future projects.
