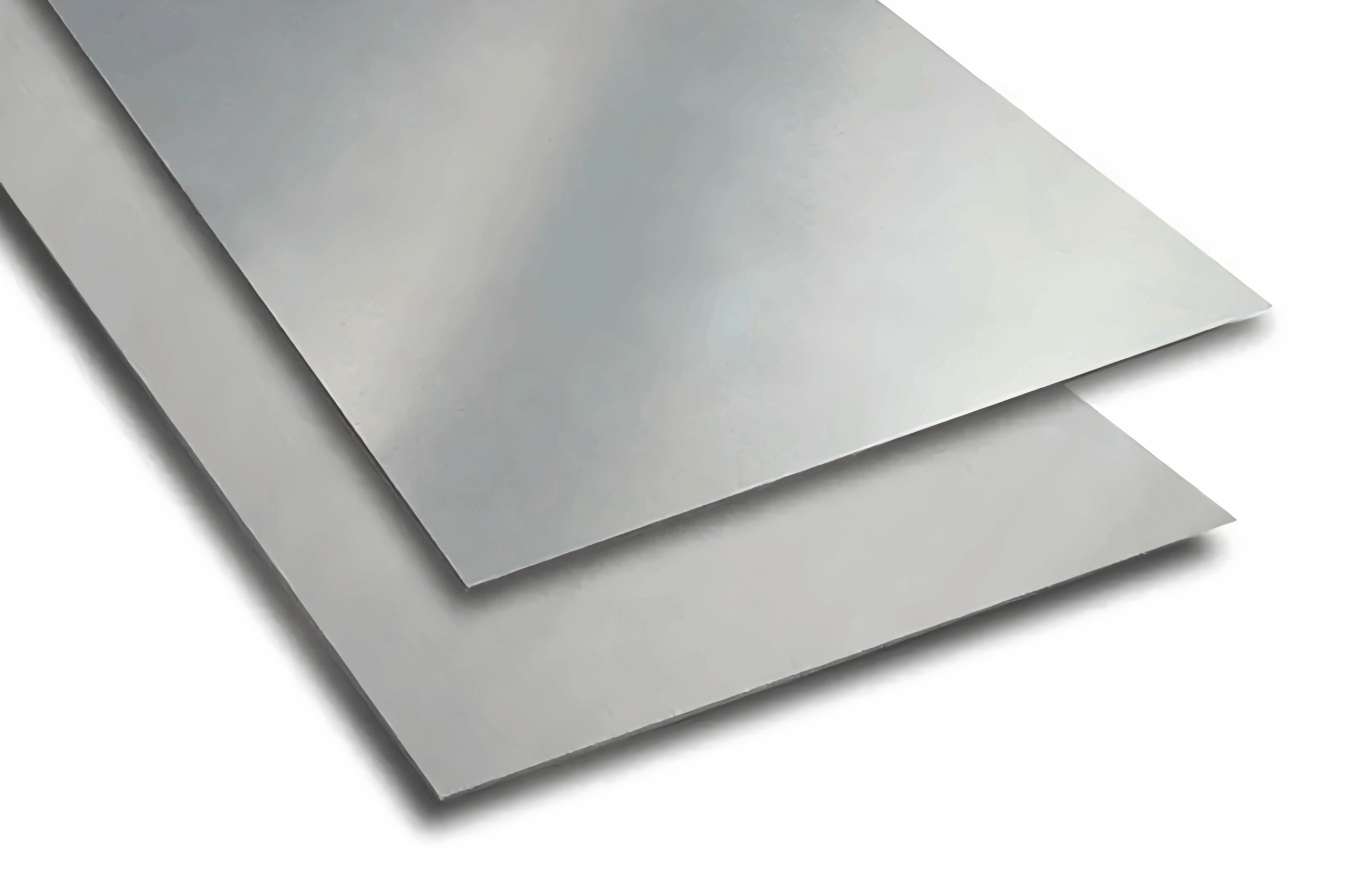

Stainless Steel Panel & Sheets & Plates: Durability and Versatility
Stainless steel sheets and plates deliver exceptional longevity and corrosion resistance, standing strong against rain, acids, salts, and other harsh elements. Their high strength enables reliable performance without excessive thickness, significantly reducing material costs while ensuring enduring durability.
As an eco-friendly solution, stainless steel is fully recyclable. Combining excellent properties with cost-effectiveness, these sheets support versatile fabrication for architectural design, decorative elements, electronics, kitchenware, marine applications, and chemical processing industries.
Common Grades & Properties
MATERIAL OPTIONS
Stainless steel sheets deliver exceptional corrosion resistance, remarkable durability, and versatile adaptability across diverse industrial applications. Among available grades, types 304 and 316 stand out as premier choices, each offering distinct performance characteristics suitable for applications ranging from commercial kitchen equipment to architectural masterpieces.
Common Grades
304 Stainless Steel Panel
Composition: 18% chromium, 8% nickel
Properties:
Excellent corrosion resistance in different environments including atmosphericconditions,chemical environments, and marine.
Good formability and weldability.
lt is easy to fake and machine easily.
For food processing, kitchen use, and architecturally oriented projects.
316 Stainless Steel Panel
Composition:16-18% chromium,10-14% nickel, 2-3% molybdenum
Properties:
Enhanced corrosion resistance, particularly in chloride environments (e.g., marineapplications).
Excellent resistance to pitting and crevice corrosion.
Good weldability, but may require post-weld annealing in certain applications.
Used in chemical processing, pharmaceuticals, and medical equipment.
Other Grades
430 Stainless Steel Panel
Ferritic stainless steel.
Good corrosion resistance, but less than 304 and 316.
Often used in appliances, automotive trim, and architectural applications.
201 Stainless Steel Panel
Austenitic stainless steel with reduced nickel content.
Lower cost alternative to 304, with similar corrosion resistance.
Used in cookware, appliances, and decorative applications.
Common Sheet Sizes
Such stainles steel panel may be available in standard forms as4x8 feet or more inventivelythey can measure up to a size of4x 10 fet depending on theirthickness, which
ranges from the least number of millimeters and reaching several mm.
Specifications & Parameters of Stainless Steel Panel
Stainless steel sheets deliver exceptional corrosion resistance, remarkable durability, and versatile adaptability across diverse industrial applications. Among available grades, types 304 and 316 stand out as premier choices, each offering distinct performance characteristics suitable for applications ranging from commercial kitchen equipment to architectural masterpieces.
Specifacations
| Product Type | Stainless Steel Sheet / Stainless Steel Plate |
| Thickness | 0.2 – 50 mm |
| Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc. |
| Width | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc. |
| Standard | ASTM, AISI, JIS, DIN, EN |
| Surface Finish | BA / 2B / No.1 / No.4 / 4K / HL / 8K / Embossed |
| Application | Architecture, Decoration, Kitchenware, Home Appliance, Medical Equipment, Petroleum, etc. |
| Certification | ISO, SGS |
| Technique | Cold Rolled / Hot Rolled |
| Edge Type | Mill Edge / Slit Edge |
| Quality Assurance | Mill Test Certificate supplied with shipment; Third-party inspection acceptable |
| Grade (ASTM/UNS) | 201, 304, 304L, 321, 316, 316L, 317L, 347H, 309S, 310S, 904L, S32205, 2507, 254SMOS, 32760, 253MA, N08926 |
| Grade (EN) | 1.4301, 1.4307, 1.4541, 1.4401, 1.4404, 1.4571, 1.4438, 1.4539, 1.4547, 1.4529, 1.4562, 1.4410, 1.4878, 1.4845, 1.4828, 1.4876, 2.4858, 2.4819 |
Techniques / Finishes / Grades
| Technique | Surface Finish | Grade Series | Thickness(mm) | Width(mm) | |||||
| 20-850 | 1000 | 1219 | 1240 | 1250 | 1500 | ||||
| Hot Rolled | No.1 / 2E | 201/202/304 | 2.2-12.0 | √ | √ | √ | √ | √ | |
| Cold Rolled | 2B | 201/304 | 0.25-3.0 | √ | √ | √ | √ | √ | √ |
| 410S/430 | 0.25-2.0 | √ | √ | √ | √ | ||||
| No.4/Hairline/SB | 201/304 | 0.22-3.0 | √ | √ | √ | √ | √ | ||
| 410S/430 | 0.25-2.0 | √ | √ | √ | √ | √ | |||
| BA | 201/304 | 0.2-1.8 | √ | √ | √ | √ | |||
| 410S/430 | 0.25-2.0 | √ | √ | √ | √ | ||||
| 2BA | 410S/430 | 0.25-2.0 | √ | √ | √ | √ | |||
Highlights of Stainless Steel Panels
Stainless steel sheets represent the perfect fusion of industrial strength and aesthetic potential. These versatile materials deliver exceptional corrosion resistance, structural integrity, and design flexibility. From mirror-like polished finishes to sustainable recycling capabilities, stainless steel seamlessly blends durability with creative expression across countless applications.
Corrosion Resistance
Stainless steel sheets provide outstanding protection against corrosive elements. They perform flawlessly in demanding environments from industrial facilities to coastal locations, maintaining their integrity and appearance over decades of service.
Versatility
Discover the extensive range of stainless steel grades and finishes that transform architectural concepts, manufacturing processes, and kitchen designs. This remarkable adaptability makes stainless steel the preferred choice for virtually every application requiring reliability and performance.
Strength and Durability
These sheets serve as powerhouse materials for structural and industrial applications. Their exceptional tensile strength and long-term reliability establish trust among engineers and designers who demand proven performance.
Hygienic Properties
Stainless steel dominates food processing and medical environments with its non-porous, bacteria-resistant surface. The material provides crucial protection against contamination in situations where cleanliness proves paramount.
Aesthetic Appeal
From mirror-bright finishes to textured patterns, stainless steel sheets create sophisticated modern aesthetics. They enhance architectural masterpieces, interior spaces, and artistic installations with their timeless visual appeal.
Ease of Fabrication
Manufacturers easily machine and weld stainless steel to create custom solutions for every project requirement. This adaptability redefines production capabilities, enabling precise execution of even the most distinctive design visions.
Low Maintenance
Stainless steel sheets resist staining and clean effortlessly, requiring minimal upkeep. They offer the ideal combination of hygiene and aesthetics where intensive maintenance is impractical, delivering lasting beauty with simple care.
Recyclability
As a fully recyclable material, stainless steel supports environmental responsibility across industries. This sustainable choice reduces carbon footprints while maintaining uncompromised performance standards.
