Palisade Fence

Description

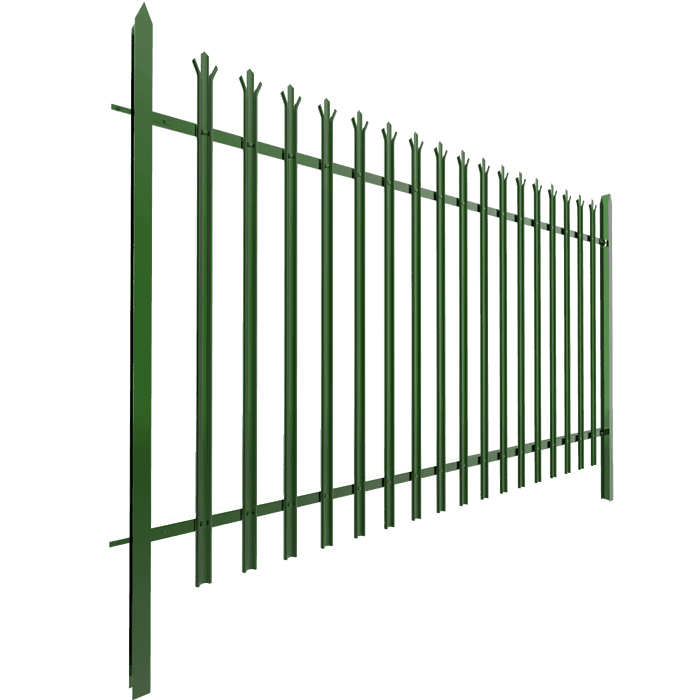

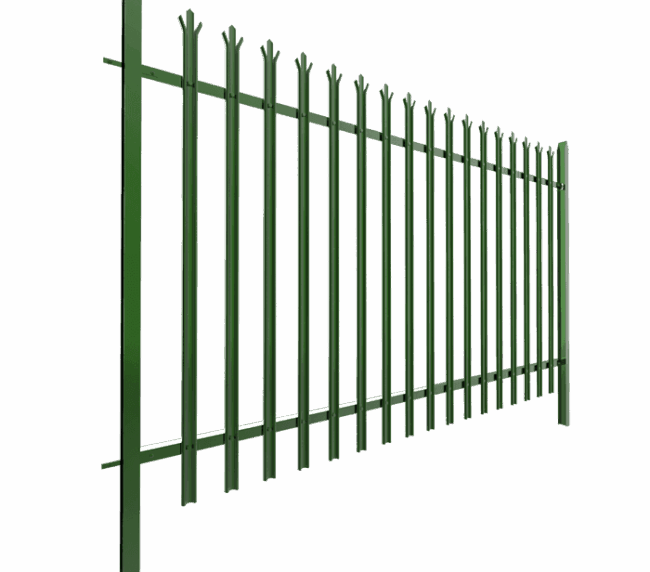

Palisade Fence Overview

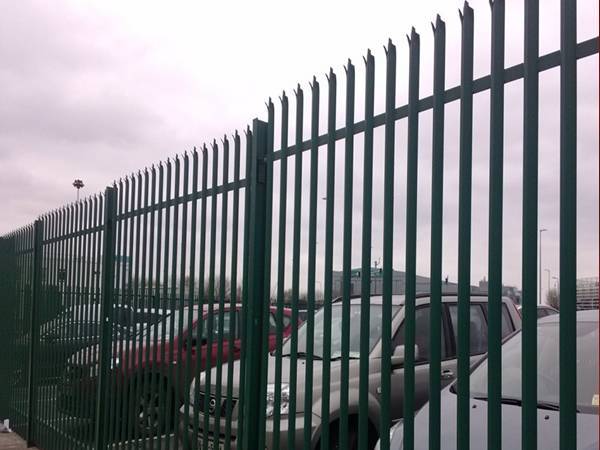

As a premier high-security fencing solution, Palisade Fencing is widely specified across European, Australian, and South African markets for its exceptional strength and long-term durability. Engineered from high-tensile steel vertical panels, this anti-climb rigid barrier effectively eliminates foot holes, preventing unauthorized access, climbing, and forced entry. Its majestic yet formidable appearance offers a powerful visual deterrent, making it a superior alternative to traditional solid walls for high-security perimeters.

Features Of Palisade Security Fencing

• Provides a high level of security against unauthorized access.
• Effectively deters vandalism and attacks.
• High-tensile fixings and support bases resist deformation.
• Available in various designs and colors.
• Colors match most surroundings seamlessly.
• Offers excellent corrosion and rust resistance.
• Performs well in diverse weather conditions.
• Installation is fast and straightforward.
• Maintenance requirements remain minimal.

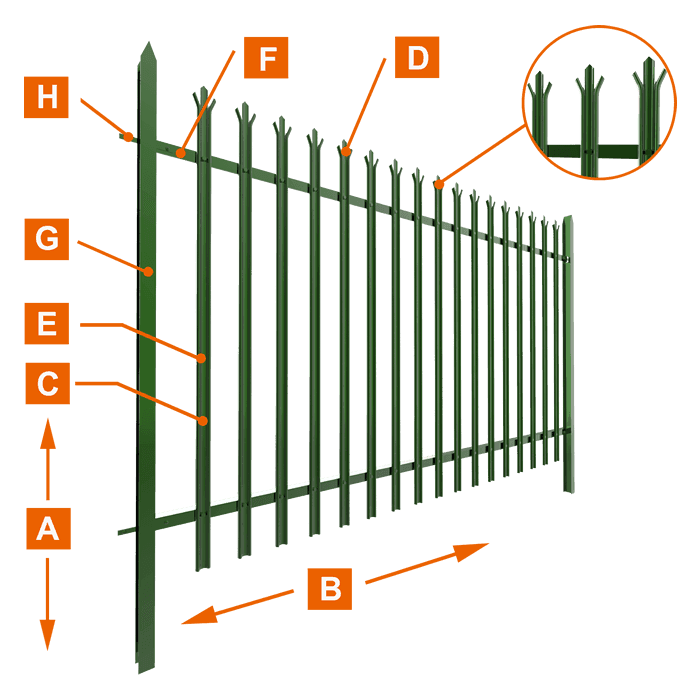

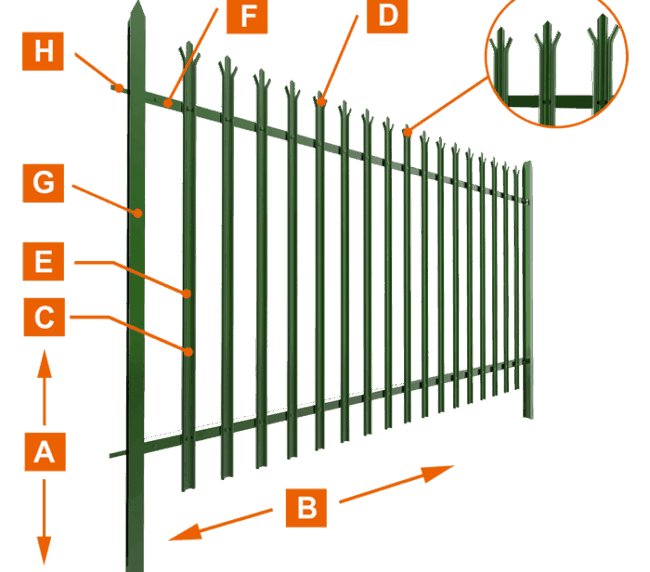

Specifications Of Palisade Fence

A Height:1800 mm, 2100 mm, 2400 mm, 3000 mm

B Width:2750 mm

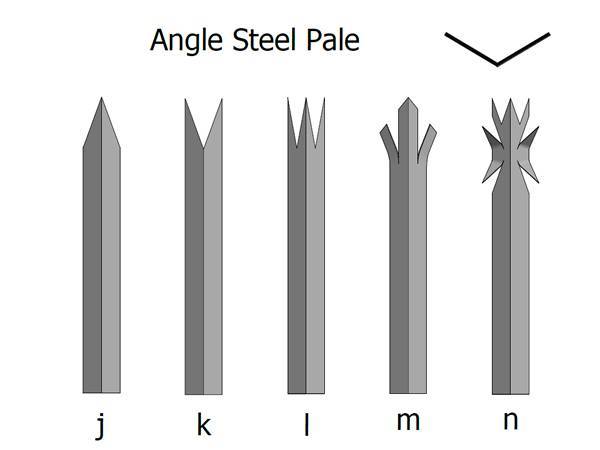

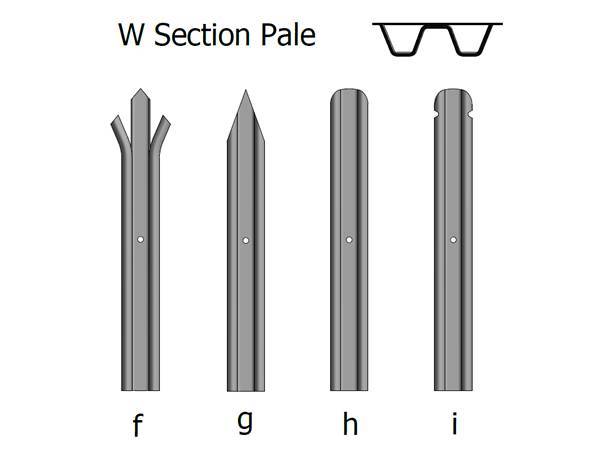

C Pale Type:W-profile, D-profile and angle steel

D Pale Top:square top, triple pointed top, single pointed top, round top, round & notch top, etc.

E Pale Thickness:1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm

F Horizontal Rail:angle steel (40 mm × 40 mm × 4 mm, 50 mm × 50 mm × 5 mm, 50 mm × 50 mm × 6 mm)

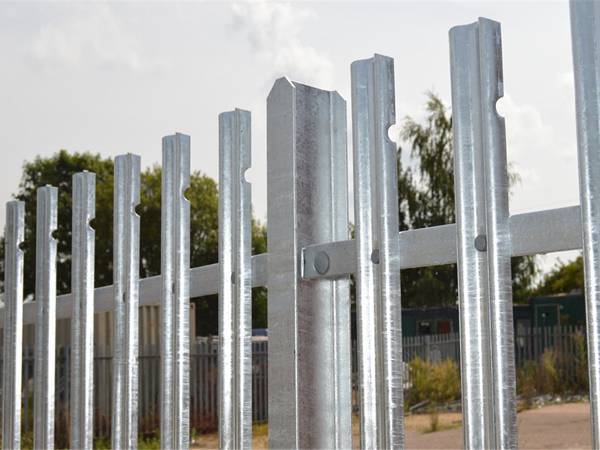

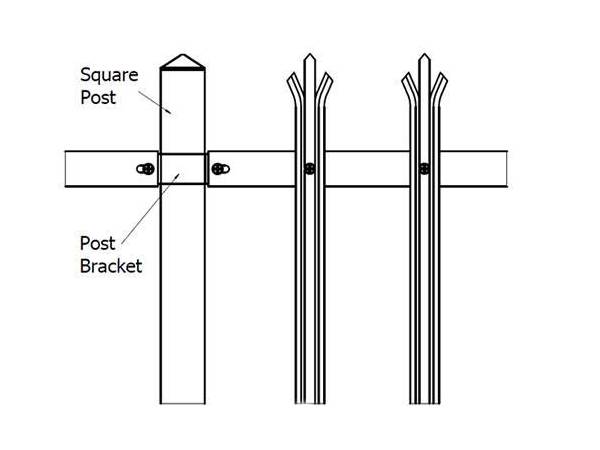

G Post:square post (60 mm × 60 mm, 80 mm × 80 mm, 100 × 100 mm); I post (100 × 55 mm)

H Connection:fish plate (40 mm × 8 mm × 150 mm)

The table below outlines the standard specifications of our factory-direct W-Section and D-Section palisade fencing panels:

Table 1 Specification of W-Section Type

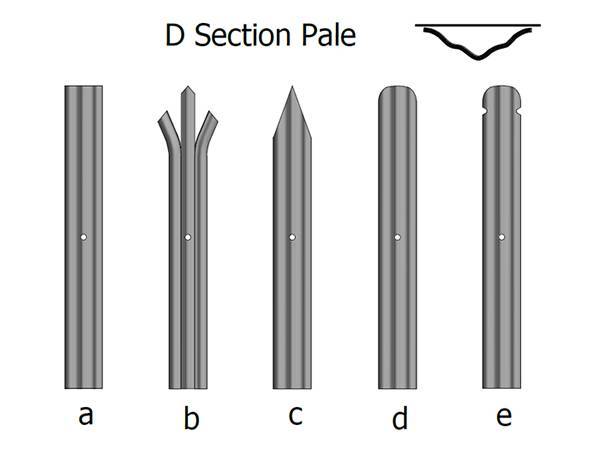

Table 2 Specification of D-Section Type

Notes:

• All panel pales are provided in 17 pieces;
• M8 × 30, M12 × 30 anti-vandal steel or stainless steel bolts are provided;
• All colors are available in Ral;
• Other materials and specifications are available upon request.

Category Of Palisade Security Fence

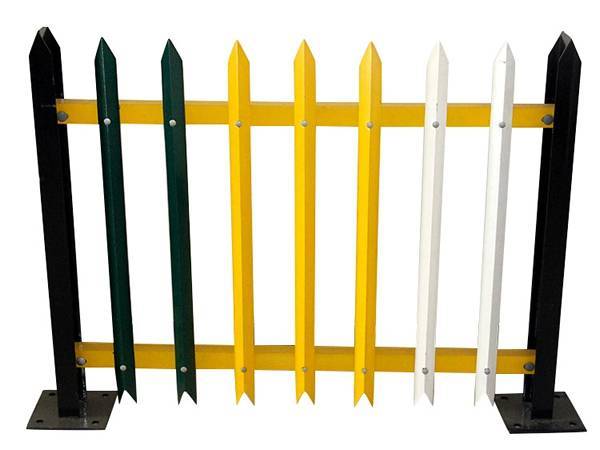

Surface Treatment

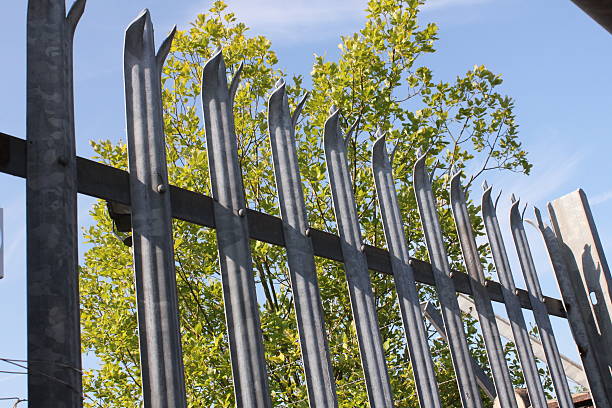

Pales

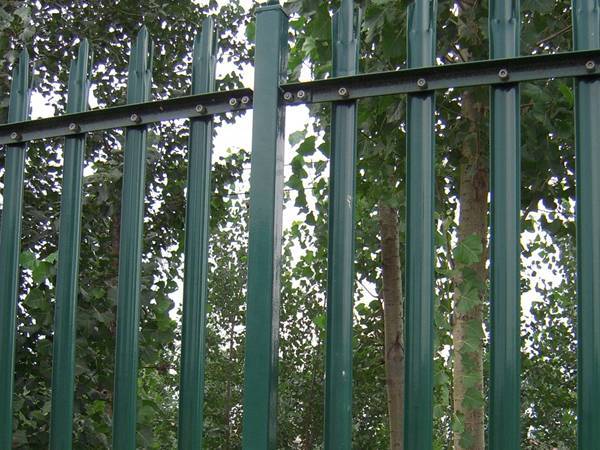

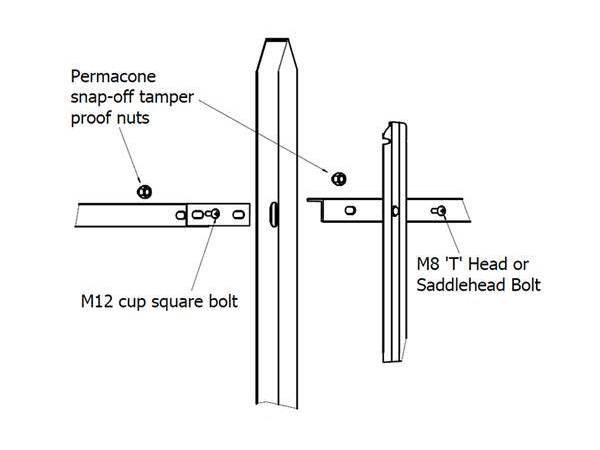

Connection

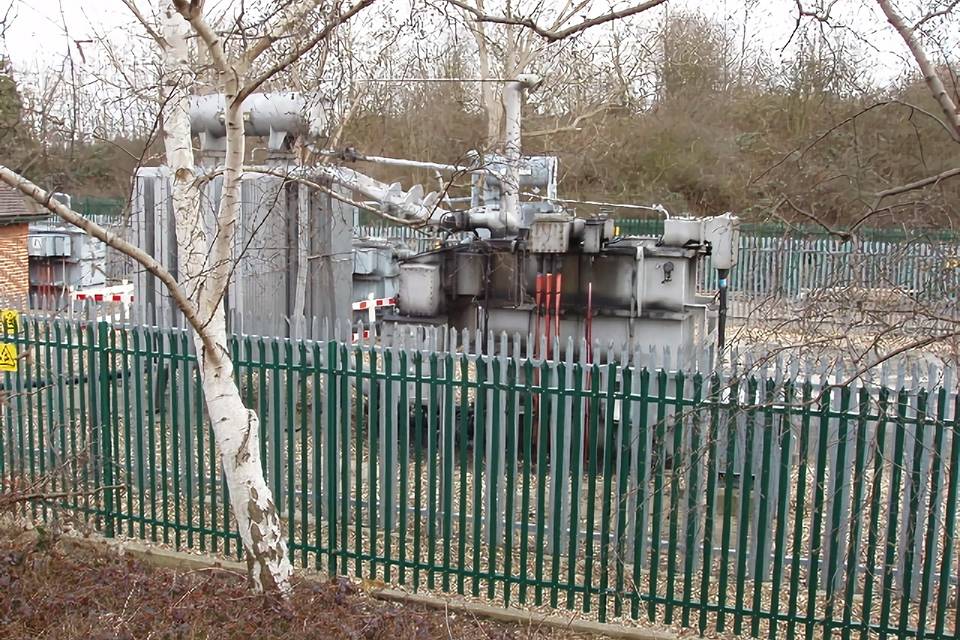

Applications Of Palisade Fencing

Palisade fencing delivers high security for outdoor areas. Schools install it to protect their premises. Commercial buildings use it for perimeter control. Parks and churches enhance safety with it. Stadiums rely on it for crowd management. Railways secure boundaries with this system. Industrial yards and company sites apply it widely.

1. Schools & Educational Facilities
   Palisade fence creates a secure boundary for campuses, preventing unauthorized entry while ensuring a visible yet robust perimeter that supports a safe learning environment.
2. Commercial & Office Buildings
   Used to define property lines and control access, this fence enhances security for business premises without compromising on professional appearance.

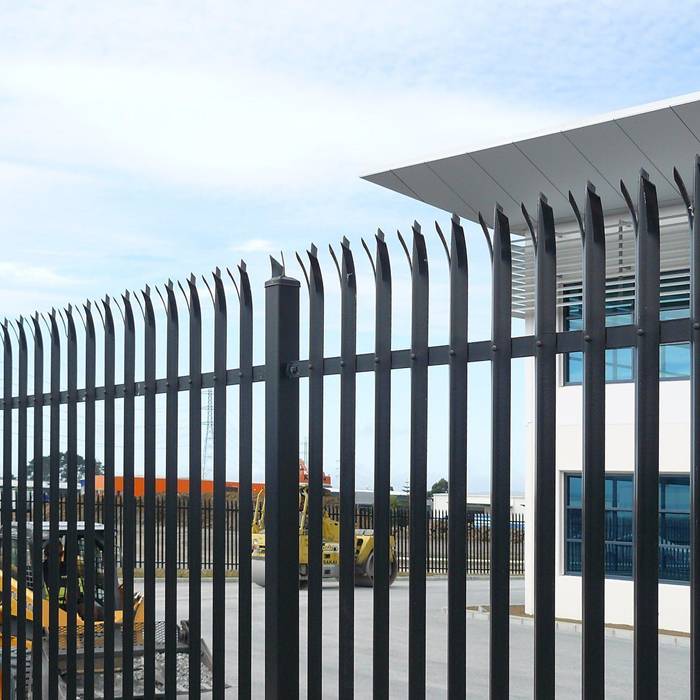

3. Public Parks & Recreational Areas
   It provides durable enclosure for parks and green spaces, balancing public accessibility with necessary protection against vandalism or after-hours intrusion.
4. Churches & Community Centers
   The fencing offers respectful yet effective security for communal spaces, helping to safeguard property while maintaining an open and welcoming atmosphere.
5. Stadiums & Sports Venues
   Ideal for crowd management and perimeter control, it ensures safety during events and deters unauthorized access to restricted areas.

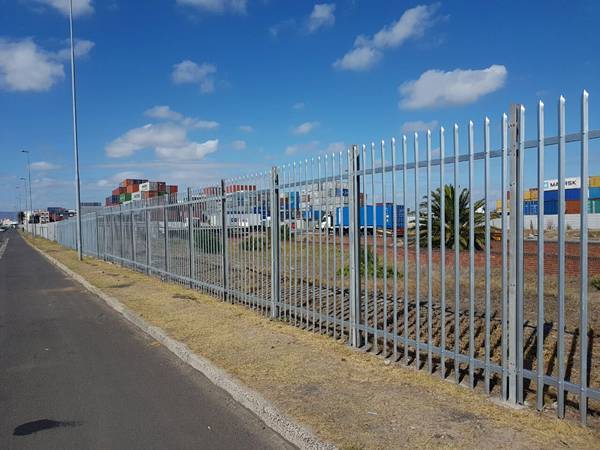

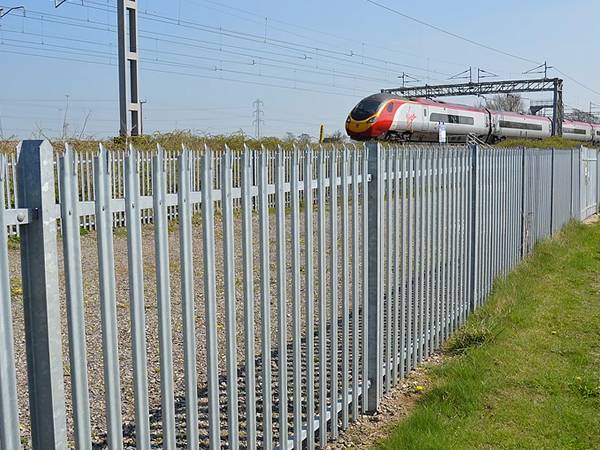

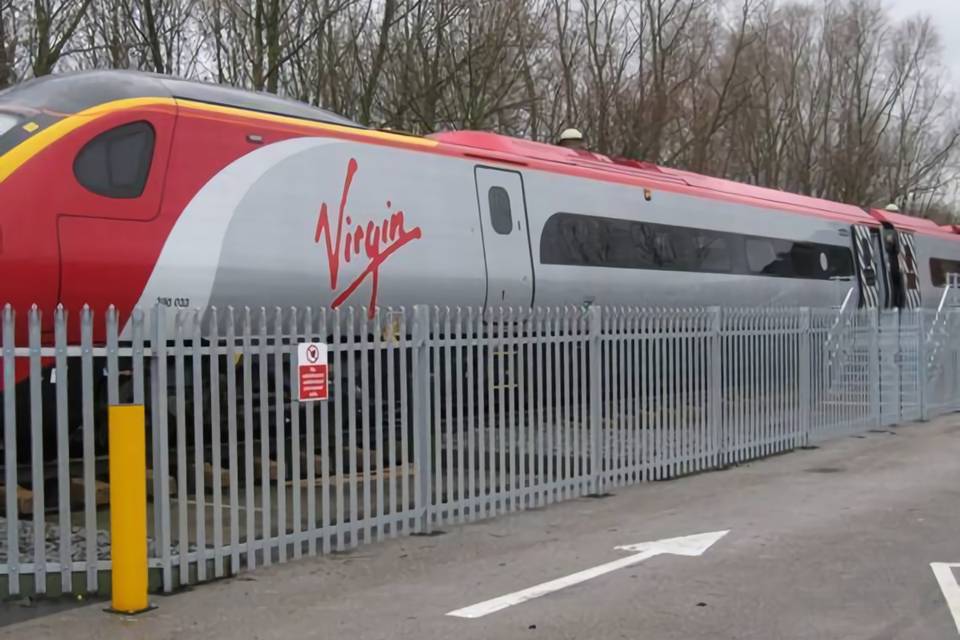

6. Railways & Transportation Hubs
   Palisade fencing secures rail corridors and station perimeters, protecting infrastructure and preventing trespassing in high-risk zones.

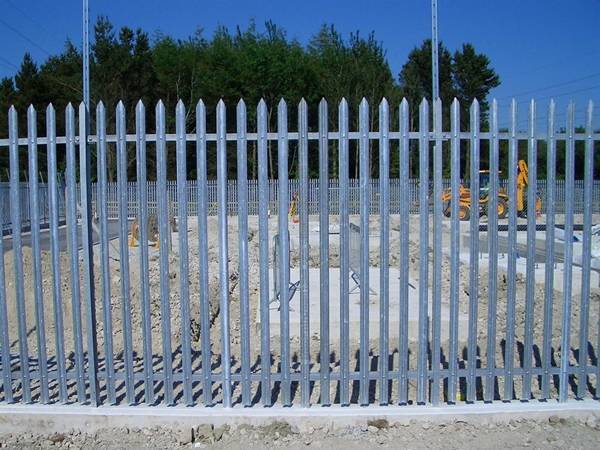

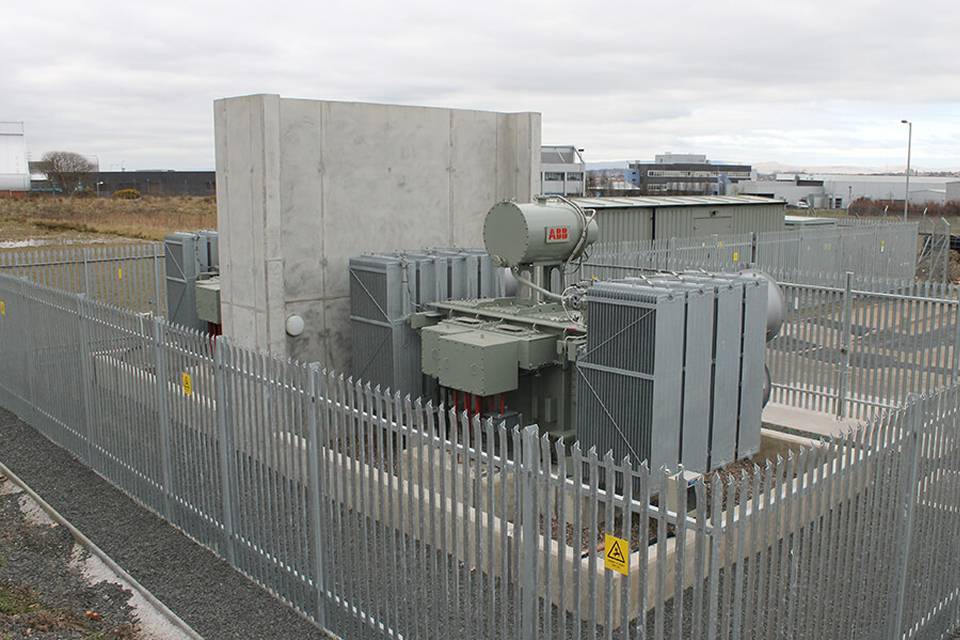

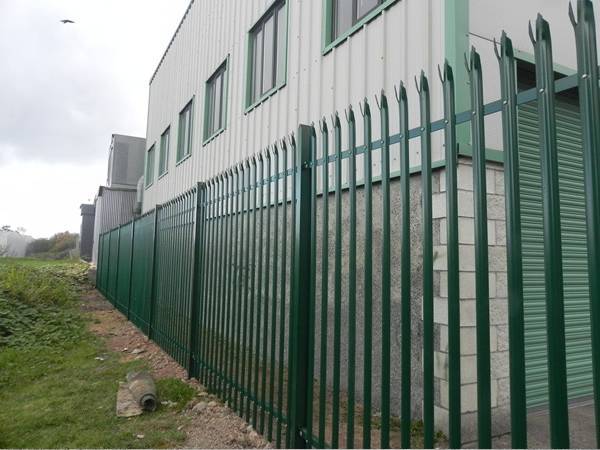

7. Industrial Yards & Warehouses
   Its strong design withstands demanding environments, providing reliable barriers for storage yards, factories, and logistics sites.

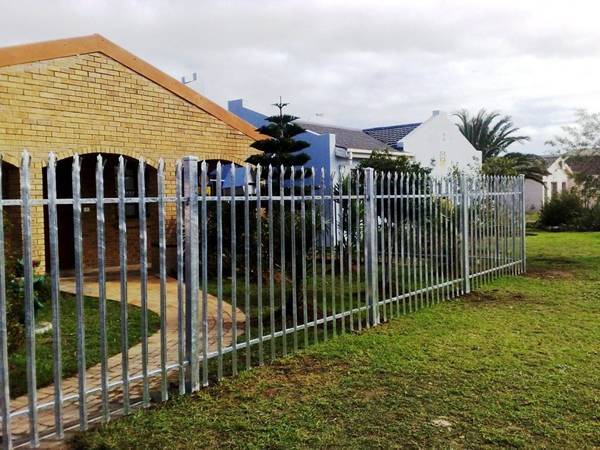

8. Residential Complexes & Gated Communities
   The fence adds a layer of security to housing projects, combining aesthetic appeal with functional protection for private living spaces.

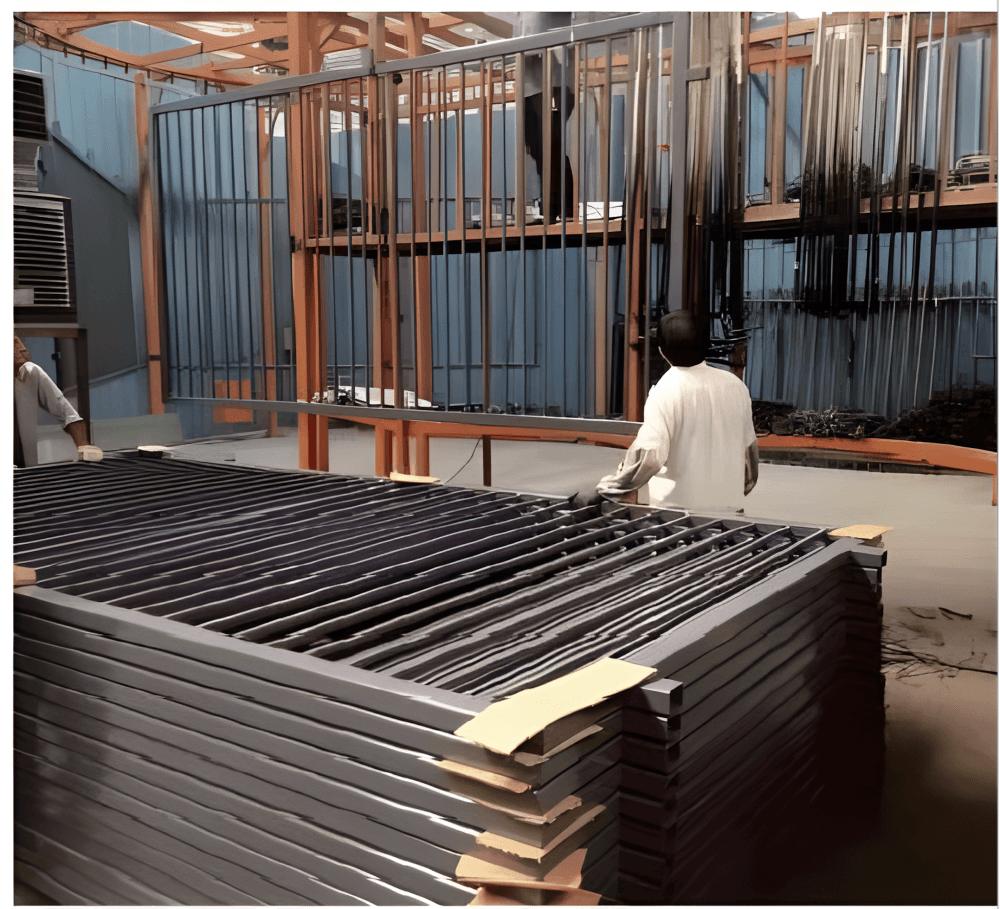

Why Choose Us

We are a leading fence manufacturer based in China, equipped with a modern factory that supports full customization to meet your specific project needs. Our direct factory production ensures competitive bulk pricing, allowing you to benefit from cost efficiency without compromising on quality. With advanced fabrication technology and strict quality control, we deliver durable, reliable fencing solutions tailored to your requirements. Choose us for exceptional value, flexible customization, and timely delivery—all backed by our industry expertise and commitment to customer satisfaction.

What is the difference between W profile and D profile palisade fencing?

W profile pales provide higher security and greater resistance to tampering compared to D profile pales, making them ideal for high-risk commercial and industrial perimeters. D profile pales are typically chosen for general boundary demarcation where medium security is required.

Why choose galvanized steel for palisade security fences?

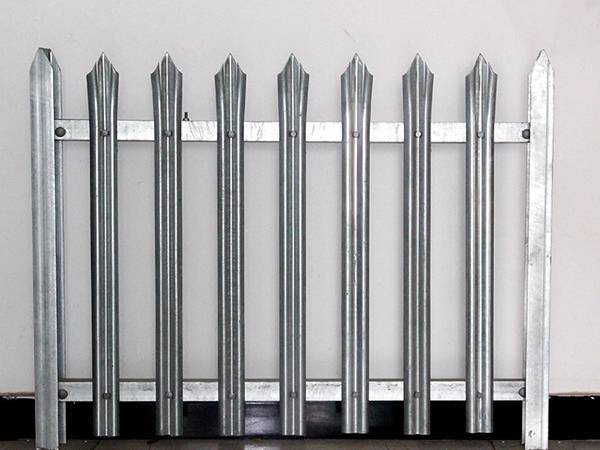

Our hot-dipped galvanized surface treatment ensures excellent corrosion and rust resistance, allowing the fencing system to withstand harsh weather conditions for decades with minimal maintenance.
