Description

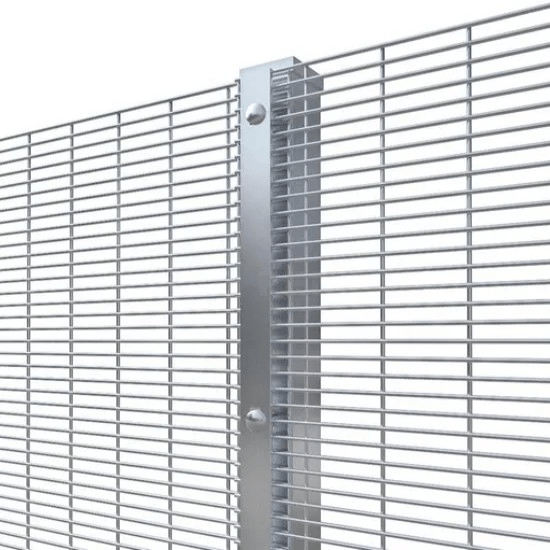

What is 358 Wire Fence?
358 wire fence provides exceptional security through welded wire mesh construction. The name “358” comes from its precise dimensions: 3-inch by 0.5-inch (76.2mm × 12.7mm) mesh openings using 8-gauge (4mm) thick wire. This anti-climb design prevents intruders from gaining handholds or footholds. The fence secures critical facilities while maintaining excellent visibility for surveillance.
Key Features of 358 Wire Fence

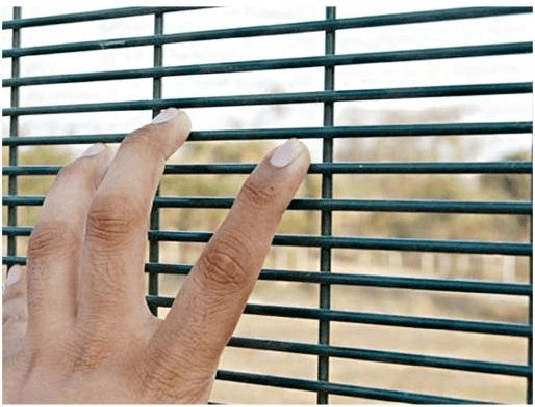

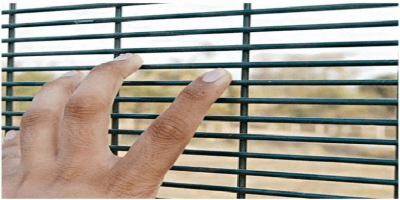

Anti-Climb Design
The 3″ × 0.5″ mesh openings prevent hand and foot holds. Intruders cannot climb the dense grid pattern. This design delivers maximum physical security.

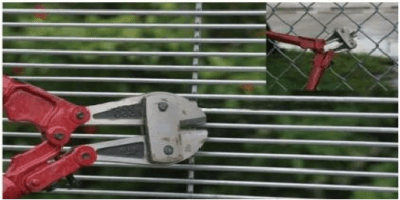

Anti-Cut Protection
8-gauge thick wires resist cutting tools effectively. Welded joints maintain structural integrity. Bolt cutters cannot easily compromise the mesh.
High Strength Construction
Each intersection receives precision welding. High-grade steel provides exceptional stability. The fence withstands substantial impact forces.
Long-Term Durability
Hot-dip galvanizing prevents corrosion. Optional powder coating adds extra protection. The material ensures decades of reliable service.

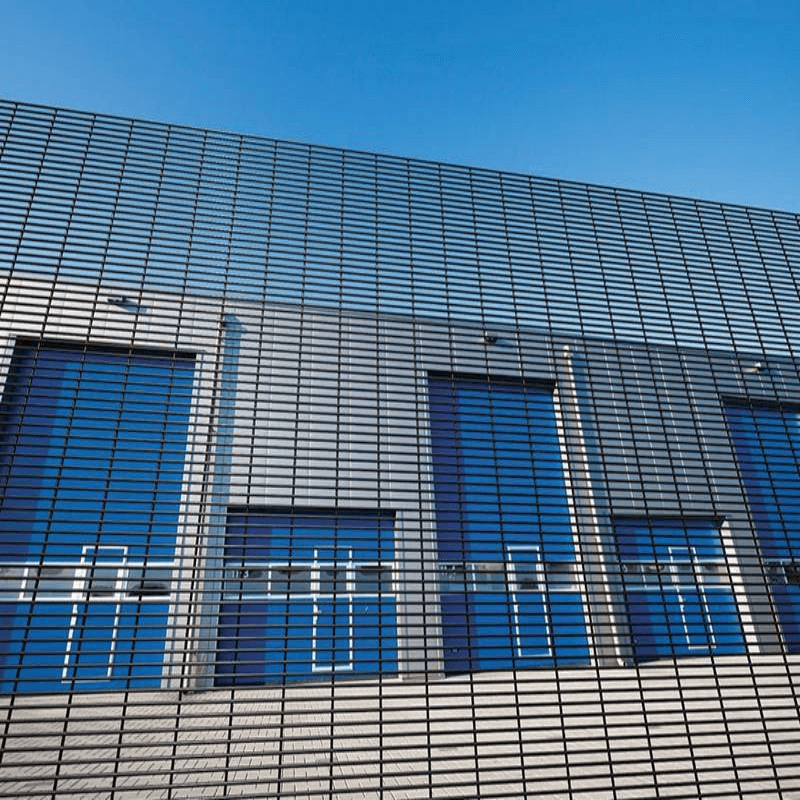

Unobstructed Visibility
The mesh pattern allows clear sightlines. Security personnel maintain visual monitoring. Natural light passes through freely.
Technical Specifications
| Technical Data | ABX 358 Specification |
| Mesh Opening | 3″ x .5″ (76.2 mm x 12.7 mm) |
| Gauge of Horizontal Wire | 1 x 8 GA (4 mm) |
| Gauge of Vertical Wire | 1 x 8 GA (4 mm) |
| Standard Height | 4′, 6′, 8′ (1235.9 mm, 1832.8 mm, 2429.7 mm) |
| Standard Length | 8’3″ (2518 mm) |
| Finish | Galvanized; Powder Coat |

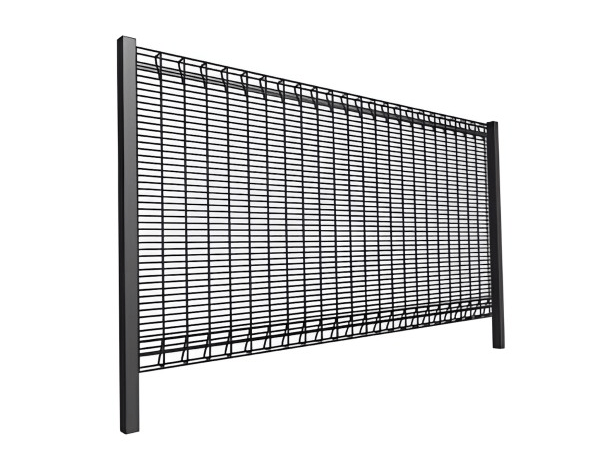

Standard Mesh Panel
| Mesh Size (mm) | Height (mm) | Width (mm) | Wire Dia (mm) | Post Height (mm) |
| 76.2×12.7 75×12.5 75×13 | 2100 | 2515 / 2750 / 3000 | 2.0 – 4.0 | 2700 |
| 2200 | 2515 / 2750 / 3000 | 2800 | ||
| 2400 | 2515 / 2750 / 3000 | 3000 | ||
| 2700 | 2200 / 2300 | 3700 | ||
| 3000 | 2200 / 2300 | 4000 | ||
| 3600 | 2200 / 2300 | 4800 | ||
| 4000 | 2200 / 2300 | 5200 |
Options Of 358 Security Fencing

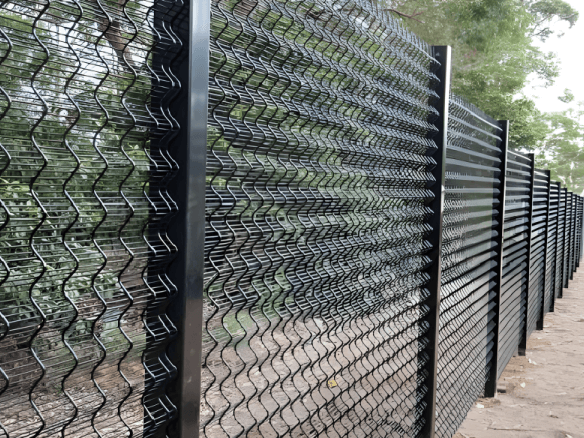

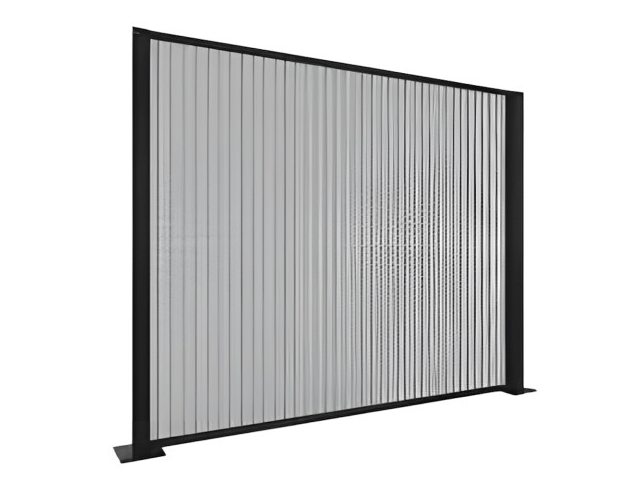

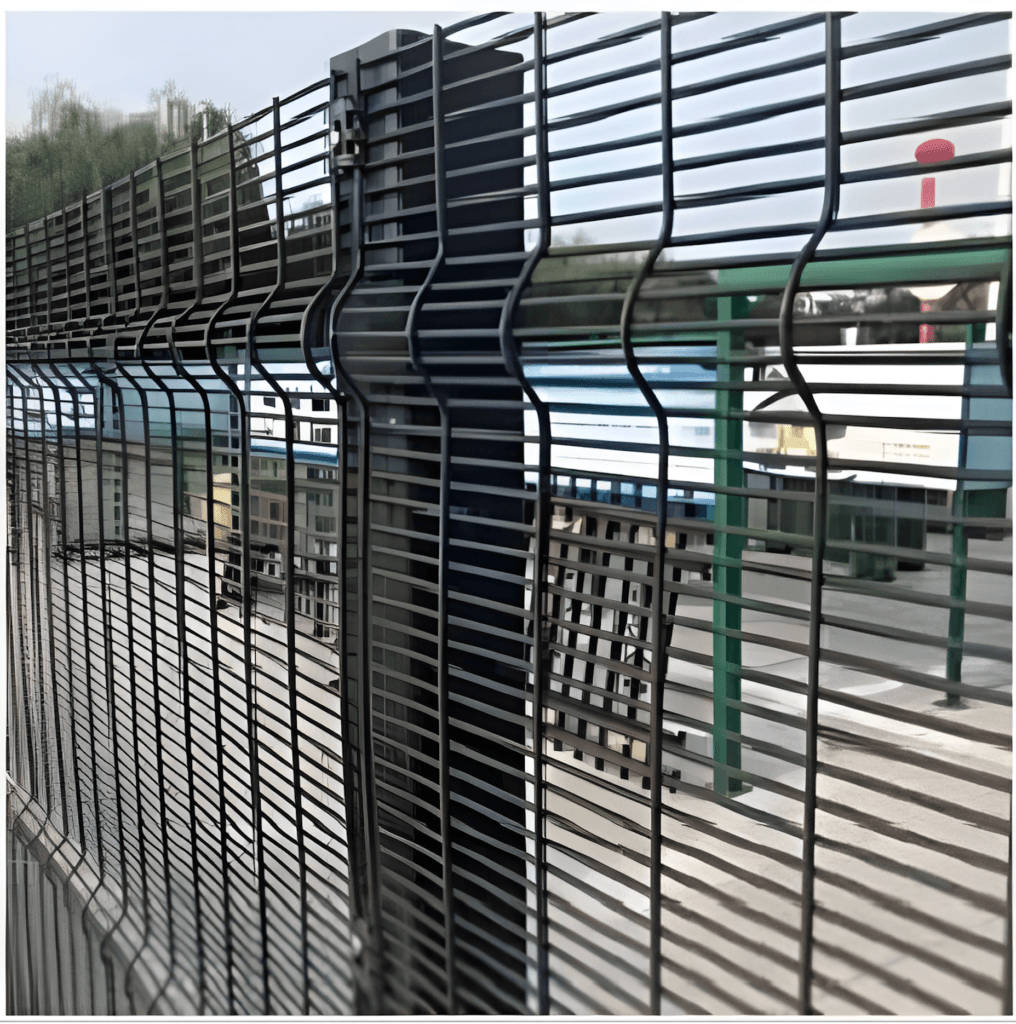

2D / 3D / Roll Top

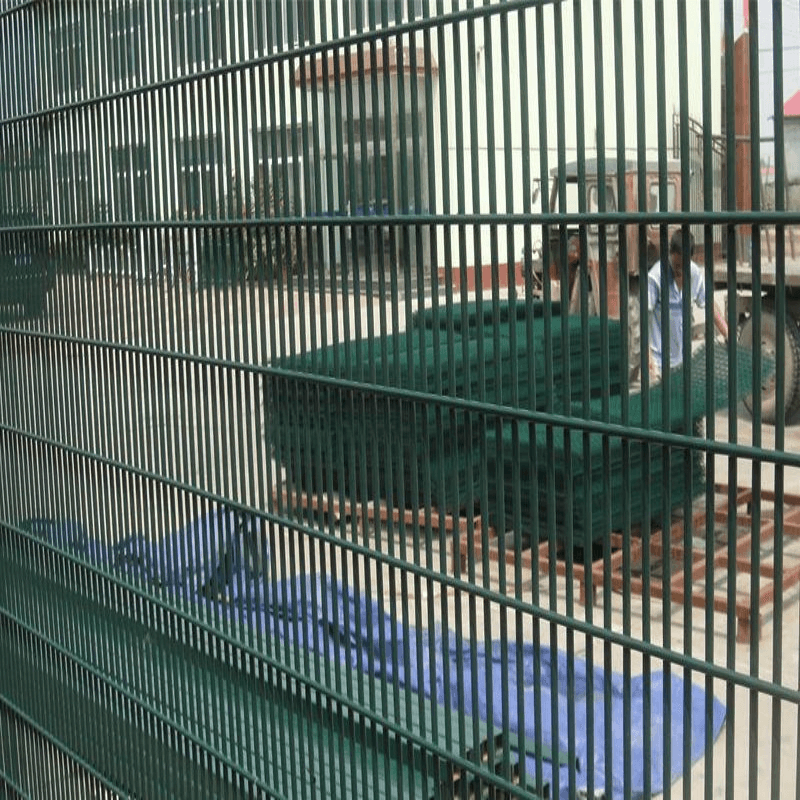

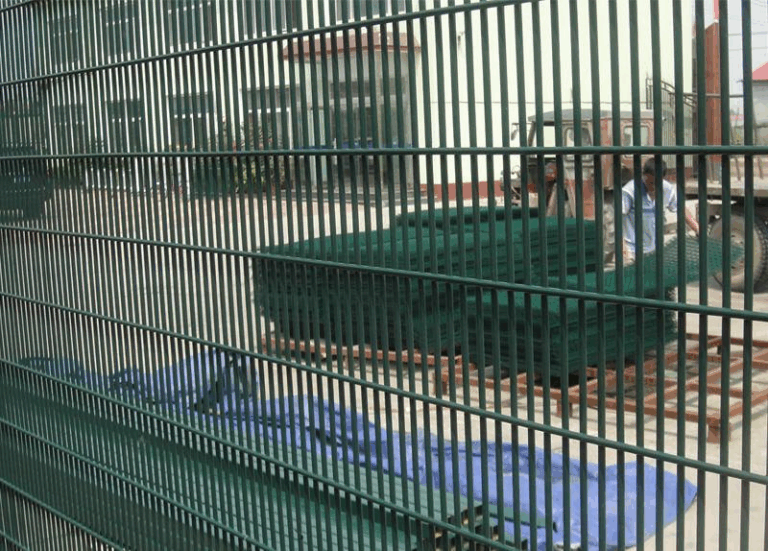

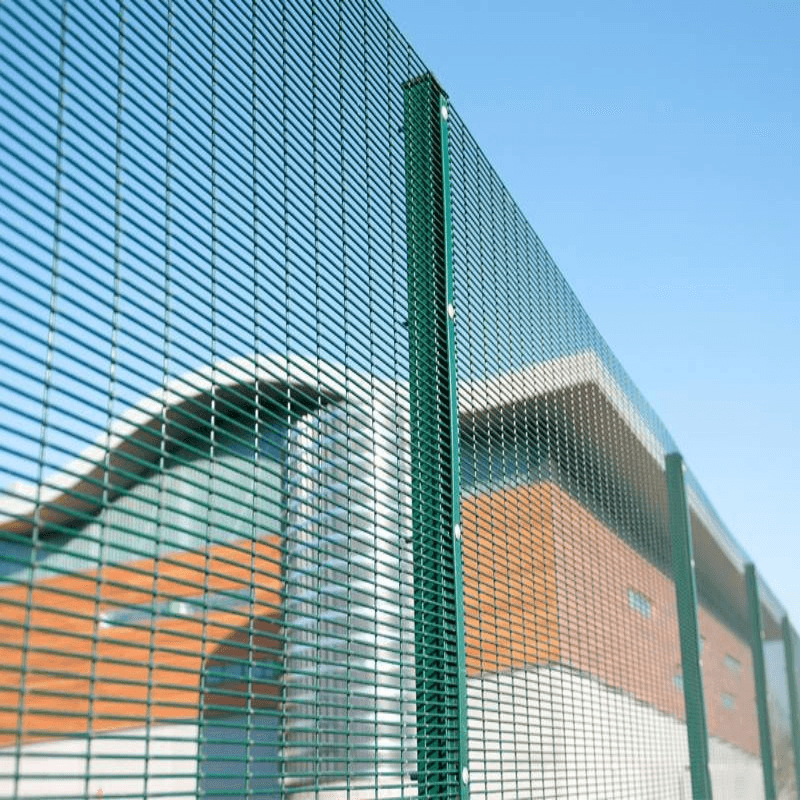

Horizontal / Vertical
Galvanized / Powder Coated
Common Applications
Correctional facilities and detention centers

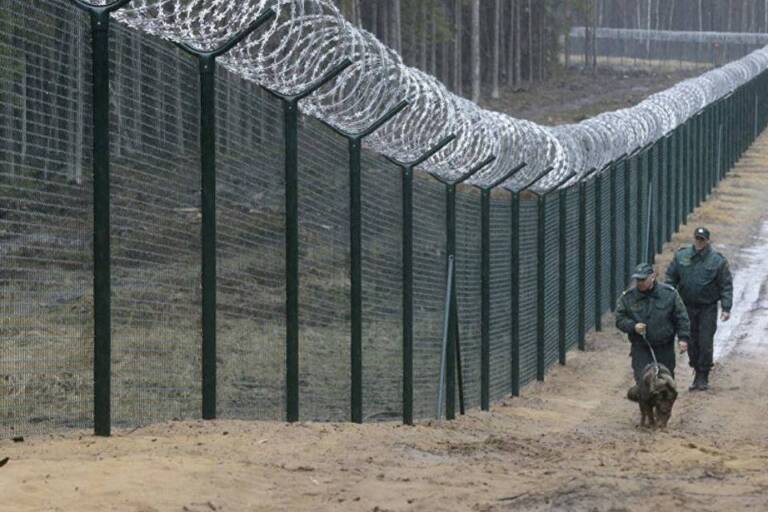

Military installations and armories

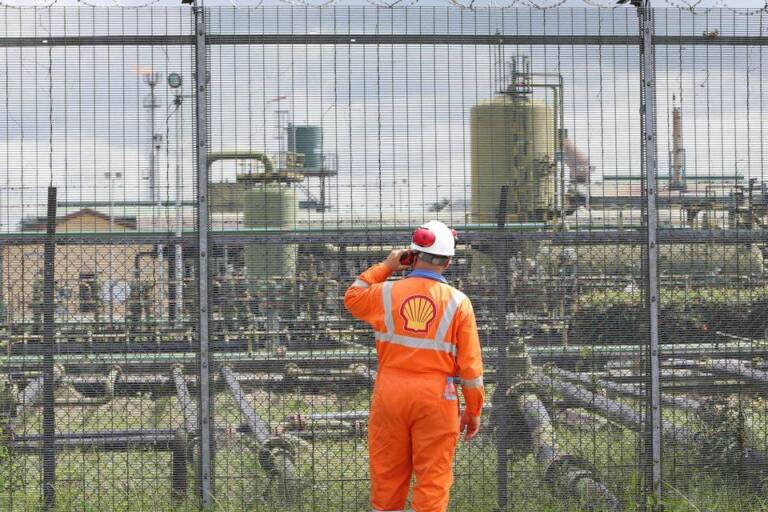

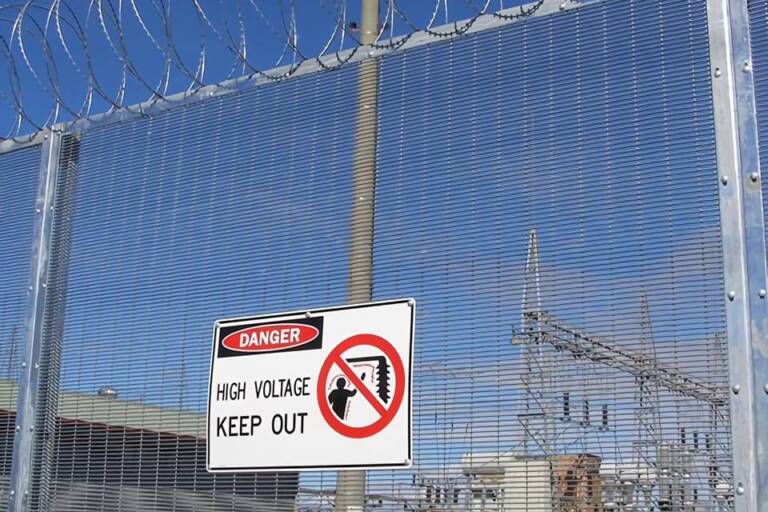

Power generation plants and substations

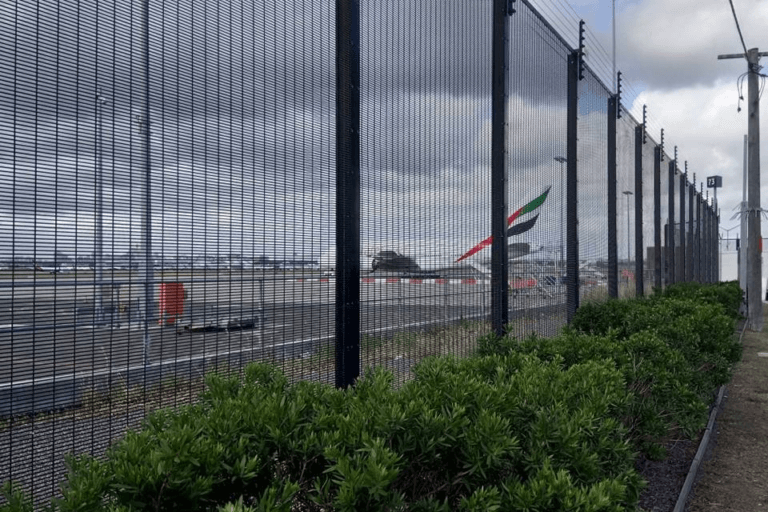

Airport perimeters and security zones
Data centers and server farms
School security perimeters
Government buildings and embassies
Industrial compounds and storage yards
358 wire fence meets the most demanding security requirements while providing lasting performance in all environmental conditions.
