Description

ABX 3D Wire Fence are aesthetically attractive and a cost-efficient alternative to traditional ornamental fencing. The special 3D technique ensures that in spite of its limited weight, this profiled panel is still astoundingly stable.

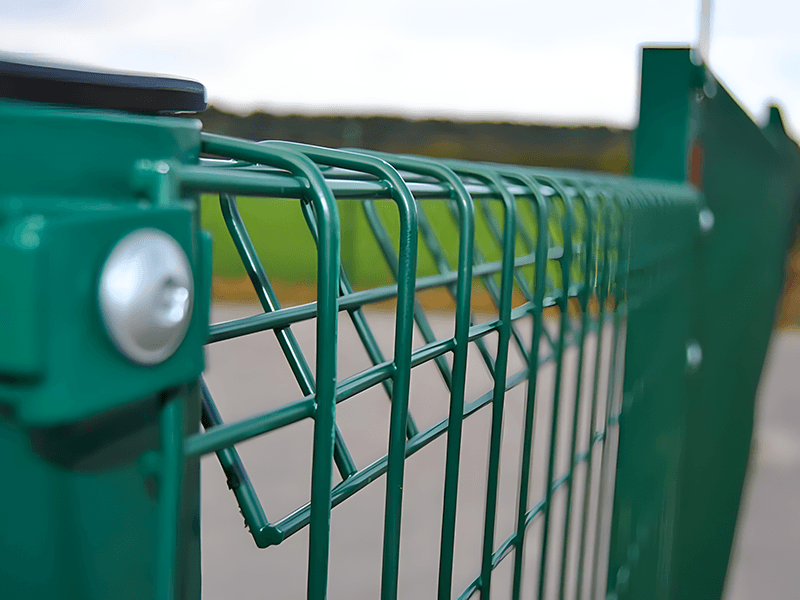

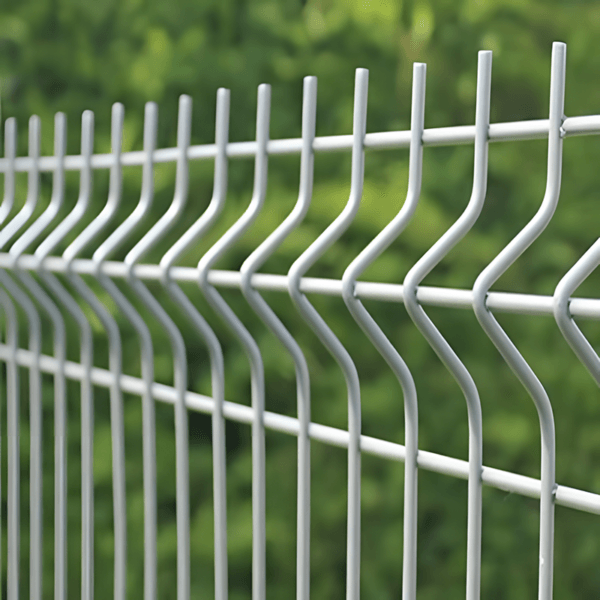

Compared to double wire fences (284 & 280 Wire Fence), 3D Single Wire Fence (286 Wire Fence) has finer wire diameter and is welded on one side. To enhance stability and aesthetics, 3D technology is often used to bend the vertical wires. Some of these bends have a triangular top and are called BRC fences. Learn more about BRC fence.

What is 3D Wire Fence?

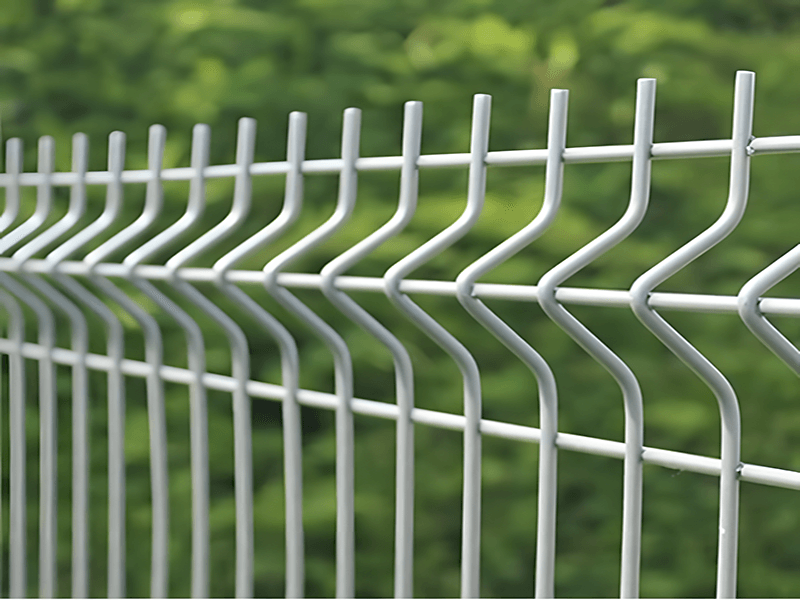

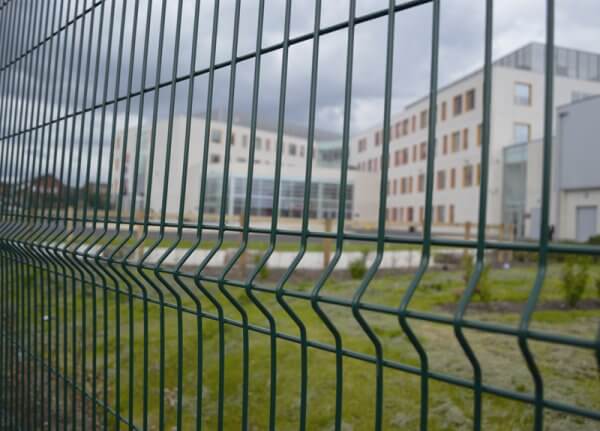

3D Wire Fence, also referred to as V-bend or curvy fence, features galvanized steel wires welded into panels with V-shaped or triangular bends. This design creates three-dimensional depth and texture, distinguishing it from flat fencing systems. The 3D structure provides enhanced strength and durability, while offering an aesthetically pleasing appearance suitable for securing homes, parks, industrial sites, and sports areas. It also delivers cost-effective performance and requires minimal maintenance.

Key Features:

• 3D Design: V-shaped folds add structural rigidity and visual depth.

• Material: Constructed from steel wire, typically galvanized or PVC-coated for rust and corrosion resistance.

• Strength: The three-dimensional structure delivers greater robustness and stability compared to flat wire fences, effectively resisting impact and climbing attempts.

• Versatility: Suitable for security, privacy screening, landscaping, sports fields, and animal enclosures.

• Appearance: Provides a modern, stylish look with customizable color options (common finishes include green, white, and grey).

• Low Maintenance: Easy to clean and built for long-term durability.

How It Differs from Traditional Fencing:
Traditional fencing often uses flat panels, such as chain-link or basic welded mesh. In contrast, the 3D fence’s bent design creates a three-dimensional barrier that delivers superior security and a more refined appearance, making it suitable for diverse applications—from residential backyards to critical infrastructure projects.

Technical Specifications

Other sizes are available upon request

	Technical Data	ABX 354 Specification
	Mesh Opening	2″ x 8″ (50 mm x 200 mm)
	Gauge of Horizontal Wire	1 x 6 GA (5 mm)
	Gauge of Vertical Wire	1 x 6 GA (5 mm)
	Standard Height	4′, 6′, 8′ (1230 mm, 1730 mm, 2430 mm)
	Standard Length	8’2″ (2508 mm)
	Finish	Galvanized; Powder Coat

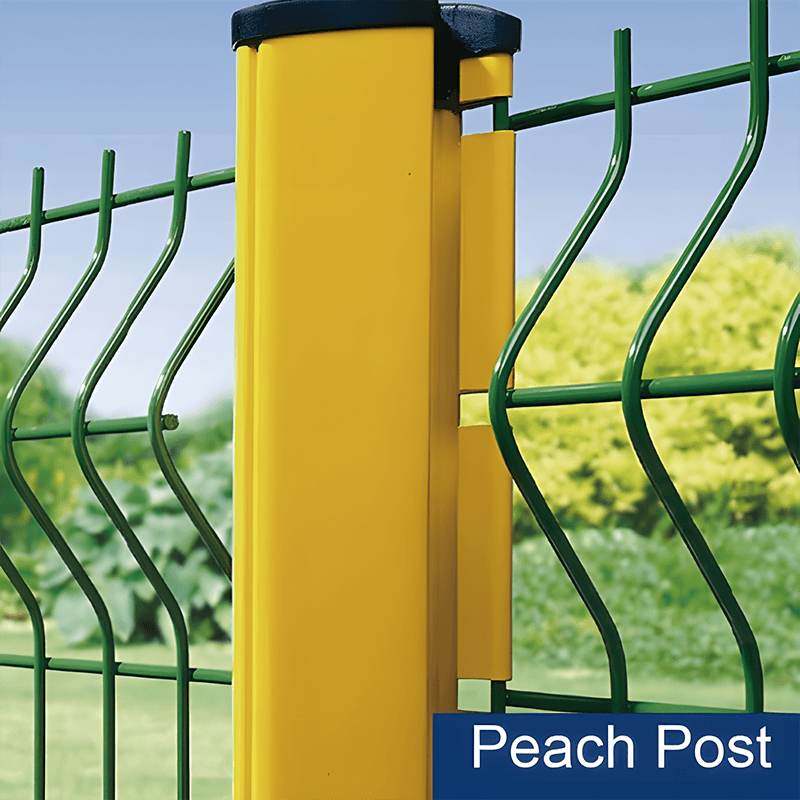

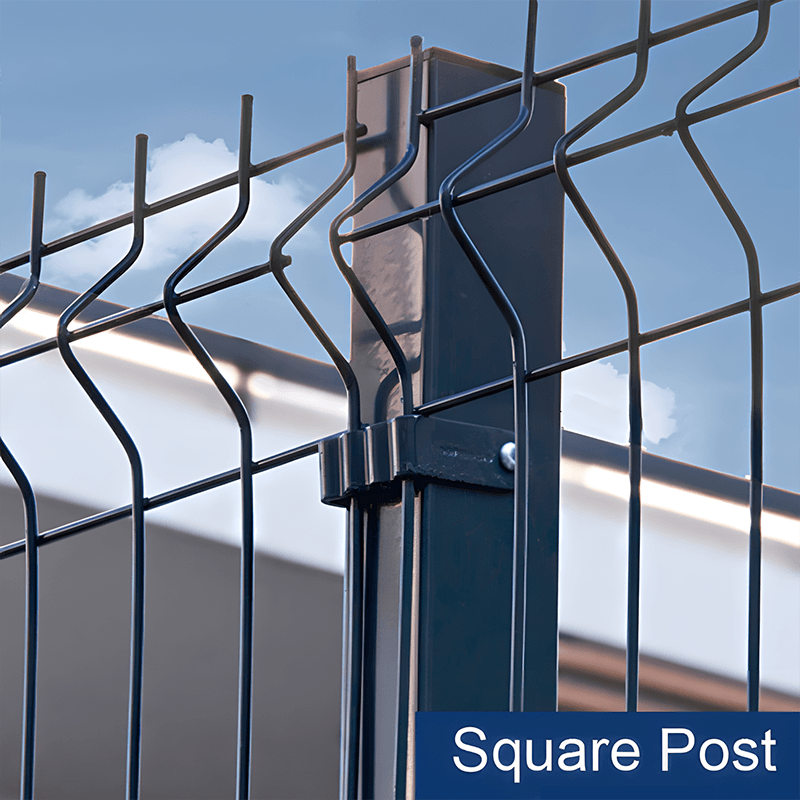

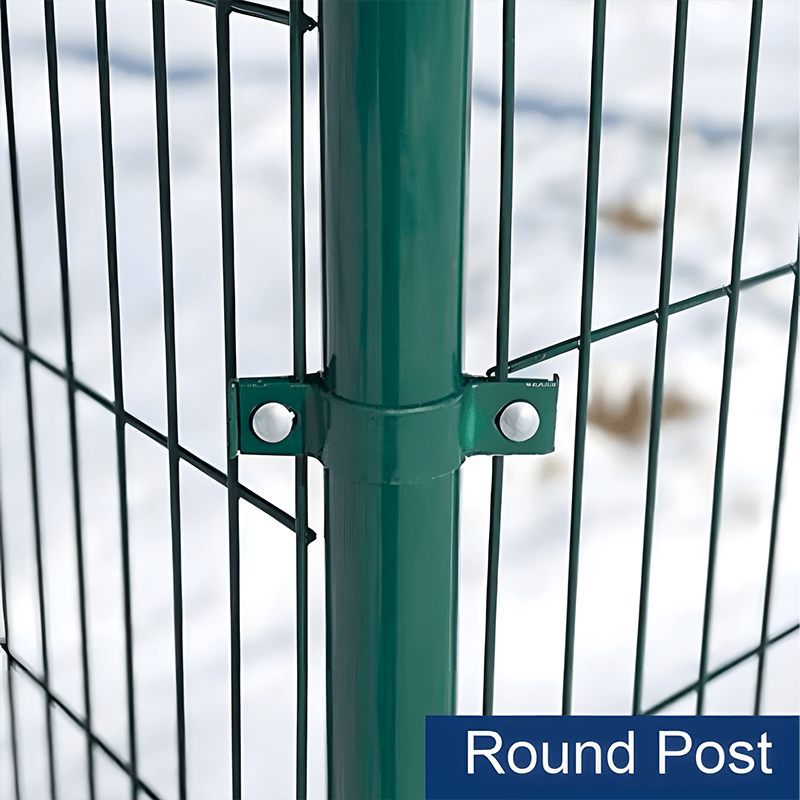

Fence Post Options

Applications Of 3D Wire Fence

Corporate & College Campuses
Secures grounds, defines property boundaries, and enhances aesthetic appeal.

Housing Projects
Provides security and maintains a uniform appearance in residential communities.

Parks & Recreation
Encloses pools, amusement parks, and public green spaces safely and attractively.

Infrastructure
Secures overpasses, parking facilities, and roadway perimeters with durable fencing.

General Security
Creates strong, rigid barriers for commercial and public sites, often featuring anti-climb designs.
