Description

Curvy wire fence features a V-shaped curve along its length. People often call it a 3D wire fence, or bending wire mesh fence. This design uses high-quality carbon steel wire. Horizontal and vertical wires weld together at every joint. Their connection creates a strong, barbed wire fence.

Generally, more V-curves appear in taller 3D mesh. This fence boasts an attractive appearance. Its structure remains exceptionally solid. Excellent visibility adds to its appeal. These qualities make it a popular security choice.

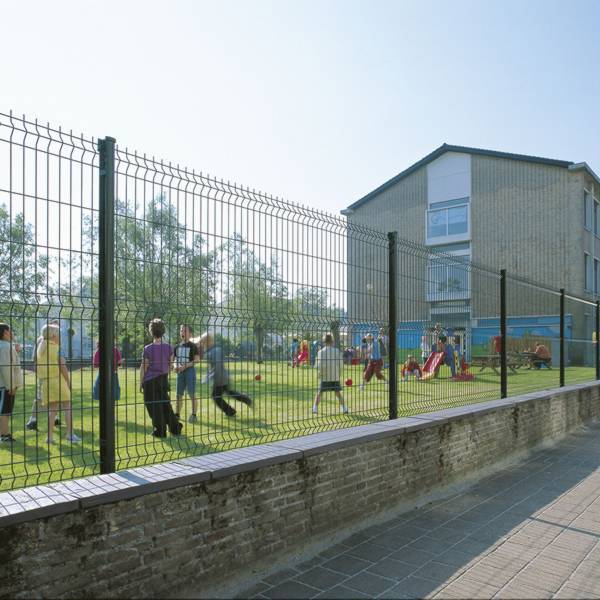

Many applications widely use this fence. You find it along railways and around airports. Schools and factories also install it. Residential areas and gardens choose this mesh. Parks, stadiums, and other venues benefit from its protection.

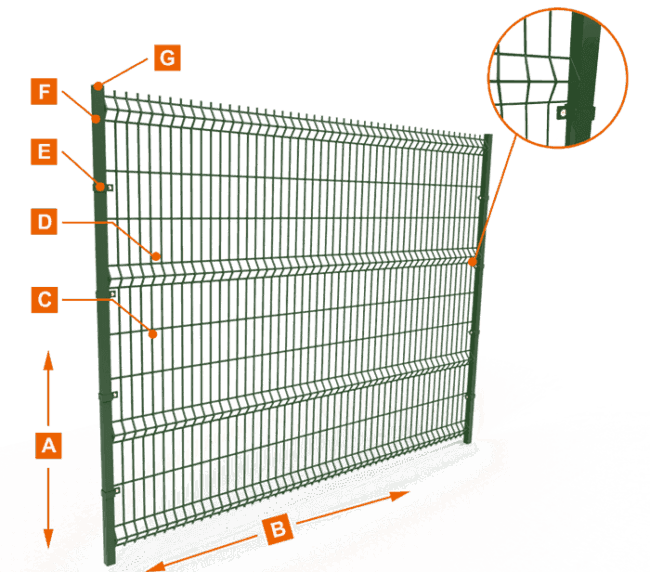

Specification Of Curvy Wire Fence

• Height: 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1530 mm, 1630 mm, 1730 mm, 1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm
• Width: 2000 mm, 2500 mm, 2900 mm
• Wire Diameter: 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm
• Mesh Opening: 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, 75 × 100 mm, etc.

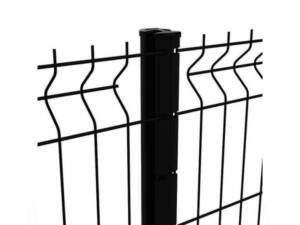

• Clamp: metal clamp / anti-UV plastic clamp / no clamp (for peach post)

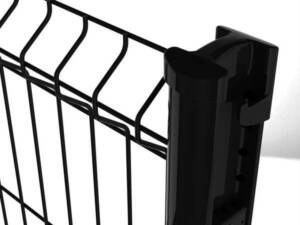

• Post:

• • Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm);
  • Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm);
  • Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm)

• Post Cap: metal cap/anti-UV plastic cap

Notes

All colors are available in Ral standards. Customers can request other materials and specifications.

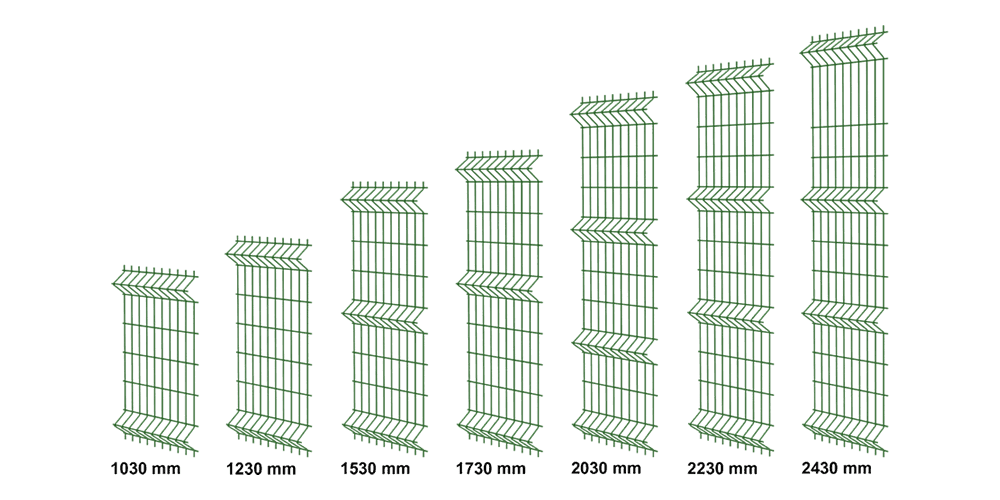

Fence heights between 630 mm and 1430 mm feature 2 folds. Heights from 1530 mm to 1930 mm include 3 folds. The design provides 4 folds for 2030 mm to 2430 mm heights. The diagram below illustrates these configurations.

Surface Treatment

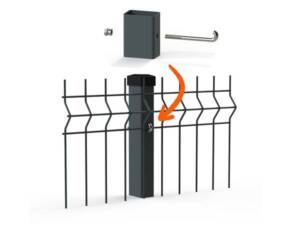

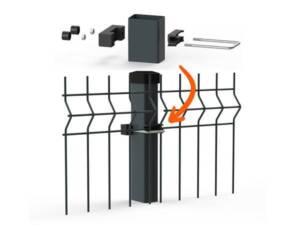

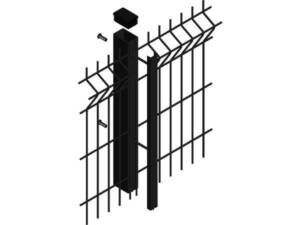

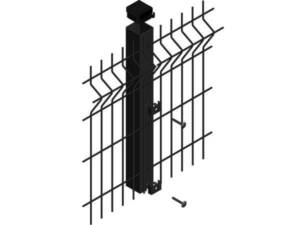

Components & Accessories

The main component of Australia temporary fence is 3d welded fence panels, panel clamps and plastic feet as shown below.
