Edge Protection Barrier Overview
Edge Protection Barrier also called Construction Anti-Fall Safety Barrier , it is a critical safety barrier system designed to prevent falls and protect workers on construction sites. It is mainly manufactured primarily from high-strength welded wire mesh, after further processing, is mainly provides reliable perimeter security for elevated work areas. structurally designed to secure construction working platforms for a variety of Application. Such as Railway-Infrastructure, Roof Edge Protection Barriers, Mesh Guard Edge Protection Panels, Pontoon Mesh Edge Protection System For Floating Platforms, and so on.
Construction sites face serious risks during high-altitude work. Falling tools and debris threaten people below. Worker falls also cause severe injuries or death. Preventing these accidents remains a critical safety focus. Industry professionals consistently discuss this challenge. Modern technology now provides effective solutions. Edge Protection Safety Barrier Systems address these core hazards directly.
ABX Edge Protection Barrier System Category
ABX initially created concrete edge protection barriers for commercial roofing teams. Our systems specifically protected roofers on elevated projects. Through years of collaboration, we have expanded our solutions. We work closely with major construction contractors globally. Today, we supply comprehensive edge protection barrier systems. Our range also includes guardrail systems for various applications. Additionally, we provide temporary fencing and safety netting. These solutions support construction safety worldwide.

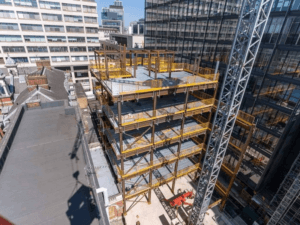

Concrete Slab Edges Protection Barrier
We offer adaptable temporary edge protection systems that suit different concrete frames, available in multiple specifications.

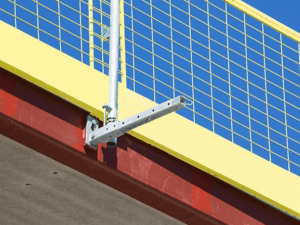

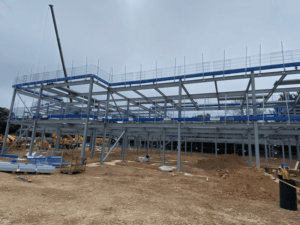

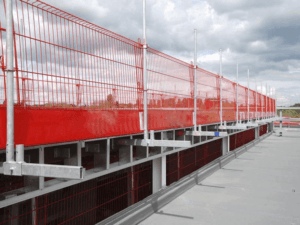

Steel Structure Edge Protection Barrier
Our systems for steel structures ensure worker safety during construction and maintenance.
Stair Edge Protection Barrier
Stairs are common walking surfaces on construction sites; our socket‑base stairway edge protection system keeps workers safe while using stairs.
Formwork Edges Protection Barrier
We install edge protection products on the primary or secondary beams of formwork.
Edge Protection Barrier With Compression Post
This collective fall‑protection device secures edges between concrete slabs.

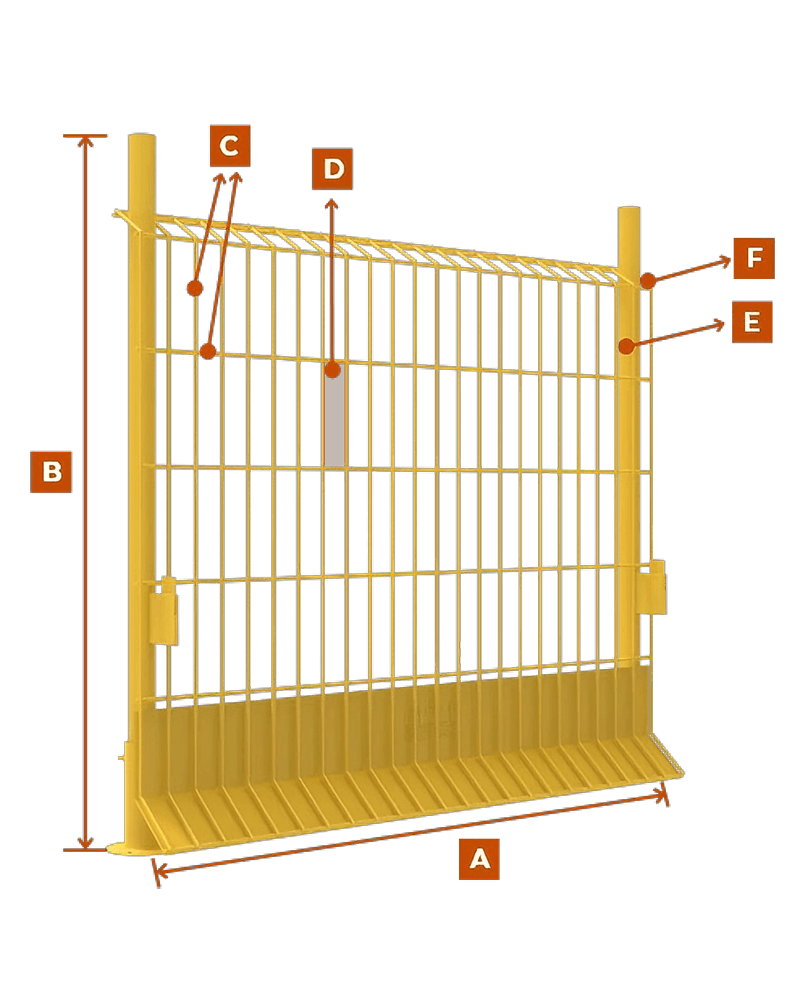

Specification Of Edge Protection Barrier
| Wire Diameter | 5 mm to 8 mm |
| Mesh Size | 50×50 mm, 75×75 mm, 50×100 mm, 50×150 mm, 50×200 mm, or as requested |
| Panel Size | 1100×1700 mm, 1100×2400 mm, 1300×1300 mm, 1300×2200 mm |
| Post Diameter/Thickness | 48 mm × 1.5 mm / 2.0 mm |
| Toe Board (Bottom of Fence) | Length matches the steel mesh panel length |
| Surface Treatment | Galvanized + powder coated |
| Color After Powder Coating | Silver, natural, yellow, red, blue, white, and other RAL colors |
| Packaging | Typically in metal pallets, or customized packaging available |
Common Usage Scenarios Of Construction Anti Fall Safety Barrier
Beyond the advantages listed above, Edge Protection Barrier Systems support global sustainability goals by creating safer work environments, reducing resource waste, and improving economic outcomes. More and more contractors already use and benefit from edge protection barrier systems in their projects.
- Commercial Construction: Protects workers from accidental falls over open edges on building sites, such as sidewalks or roof edges.
- High‑rise Building Solutions
- Falling Objects Solutions
- Flat Walking Space Solutions
- Industrial Construction: Protects edges of factories, power plants, warehouses, and other specialized facilities.
- Structure Edge / Formwork Edge / Roof Edge Protection
- Falling Objects Solutions
- Flat Walking Space Solutions
- Residential Construction: Provides compliant fall‑protection equipment for residential projects, preventing workers from reaching fall hazards or falling over roof edges.
- Housing Roof Edge
- Scaffolding Edge
- Infrastructure Construction: Used in infrastructure projects to protect structural edges from impacts and environmental hazards.
- Flat Walking Space Solutions
- Construction Roof
- Bridge Safety
- Rail Platform
Feature & Babefits Of Construction Safety Barrier
Superior Structural Design
Constructed from low-carbon steel welded wire mesh for maximum durability
Features a 90-degree bend at the top edge for enhanced impact resistance
Integrated toe board at the base prevents falling objects and debris
Continuous wire construction ensures smooth, flat panels without sharp edges
Enhanced Safety Performance
Provides essential anti-fall protection for roof edges and working platforms
Secure barrier system protects personnel from elevation hazards
Prevents tools and materials from falling off edges
Withstands significant impact forces while maintaining structural integrity
Practical Advantages
Hot-dip galvanized and powder-coated surface for corrosion resistance
Modular design allows quick installation and dismantling
Reusable system reduces long-term project costs
Adaptable to various applications including floating platforms and infrastructure projects
Key Applications:
Roof edge protection systems
Railway and bridge construction
Floating platform safety barriers
High-rise building construction
Temporary work platform perimeter protection
This Edge Protection Barrier combines the strength of welded wire mesh with intelligent safety design, creating an indispensable safety barrier for modern construction sites where anti-fall protection is paramount.
FAQ
What are the different classes of edge protection according to EN 13374?
Under the European standard EN 13374, temporary edge protection is categorized into three classes based on the slope of the working surface. Class A is for flat surfaces or slopes up to 10°, resisting static loads like a person leaning. Class B is for slopes up to 30°, designed to resist low dynamic impacts from a person sliding. Class C is for steep slopes up to 60°, providing high dynamic resistance to catch a person sliding rapidly down a roof. Choosing the correct class is vital for site-specific safety.
Can edge protection be installed without drilling into the roof?
Yes, for finished roofs where piercing the waterproof membrane is not an option, a Freestanding Counterweight System is used. These systems rely on heavy weighted blocks connected to the guardrail uprights via cantilever arms. The weight provides enough stability to meet safety standards without any physical attachment to the building structure. These are ideal for retrofitting solar panels or conducting HVAC maintenance on existing flat roofs, as they maintain the roof’s integrity while ensuring workers are fully protected from the perimeter edge.
What are the key inspection requirements for these systems?
Edge protection systems must be inspected by a competent person immediately after installation and at regular intervals thereafter, usually every seven days. Additional inspections are mandatory following any event that might affect the system’s structural integrity, such as high winds, extreme weather, or an accidental impact. The inspector checks for loose fixings, damaged mesh, or displaced counterweights. Keeping a written record of these inspections is a legal requirement in many jurisdictions (like OSHA or HSE) to demonstrate that the site is maintaining a safe working environment.
