Description

Formwork Edge Protection involves installing barrier on beam. These barriers mount on primary or secondary beams. They protect workers from falling during concreting. Objects also remain secure from height drops.

Beams may use H20 timber construction. Aluminum beams serve as another option. ABX developed fixing components for both types. These components meet all edge protection demands. Formwork tasks require different solutions often.

We customize any edge protection type for formwork. Your project determines specific requirements. Detailed specifications guide our manufacturing process.

Formwork Edge Protection Barrier Solutions

ABX offers two main formwork protection systems. We provide free design services always. Detailed drawings accompany each system. Calculations ensure structural compliance. Advanced 3D drawings visualize installations. We help keep work zones completely safe. Security remains our top priority

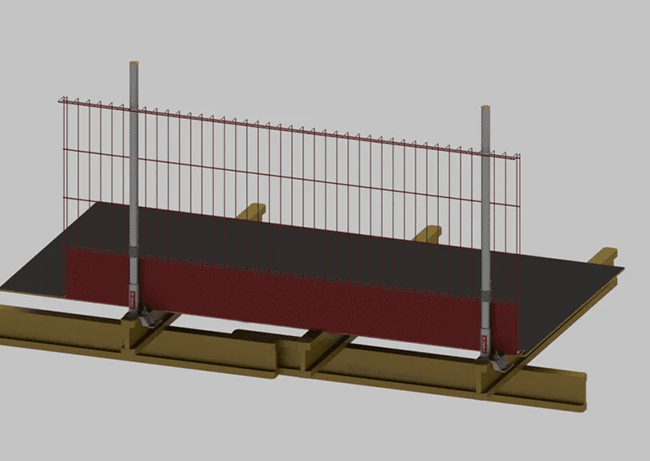

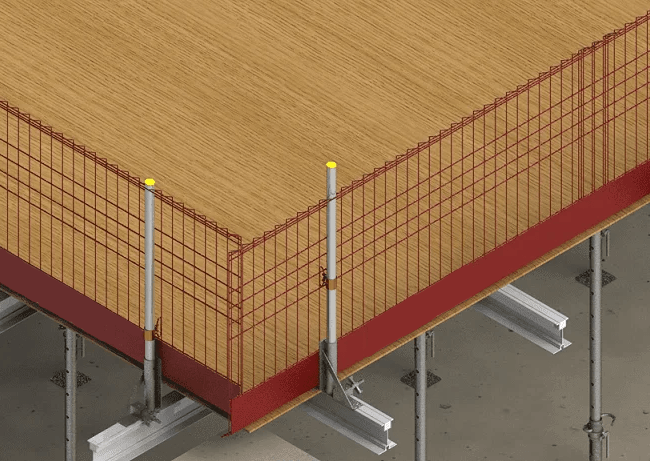

Edge Protection for Wood Structure This system meets required load criteria. Formwork decking arrangements vary widely. ABX engineered clamps for all timber beams. They fit various beam section sizes perfectly.	Edge Protection for Aluminum Structure We designed this system specifically for aluminum. Its best feature is lightweight construction. The system adapts to most beam sizes easily.

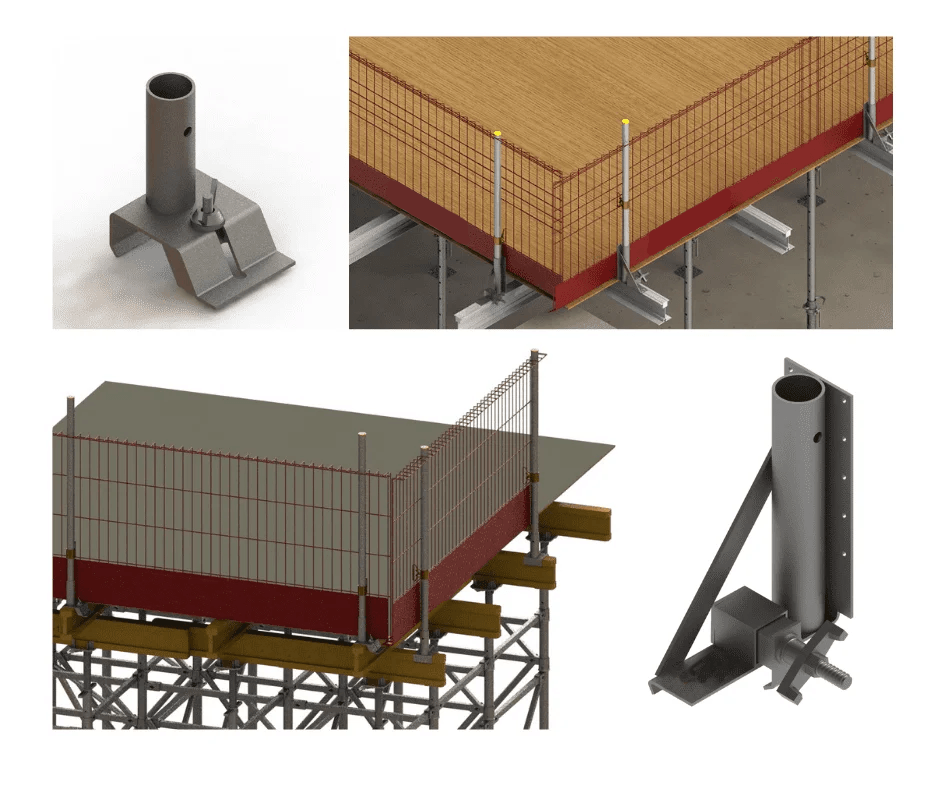

ABX Formwork Edge Protection Barrier Clamp Details



Timber beam clamps fix to H20 beams securely. We offer clamps for 40mm width beams. Clamps for 60mm width beams are also available.

Aluminum beam clamps feature adjustable designs. They suit 60mm to 150mm width beams. ABX clamps match various decking systems perfectly. We engineered them for multiple extrusion sections.

Installation Guidelines

Inspect beam webs before installation. Check beam ends for damage carefully. Look for any deformation signs. Ensure beams fasten to scaffold securely. Verify formwork structure stability completely. Fix clamps according to ABX instructions precisely. Position clamp centers at least 150mm from beam ends.

Follow ABX recommendations for horizontal spacing. Clamps should fix only on specific beams. These beams must angle right to the grid barrier. Proper alignment ensures maximum safety always.
