Description

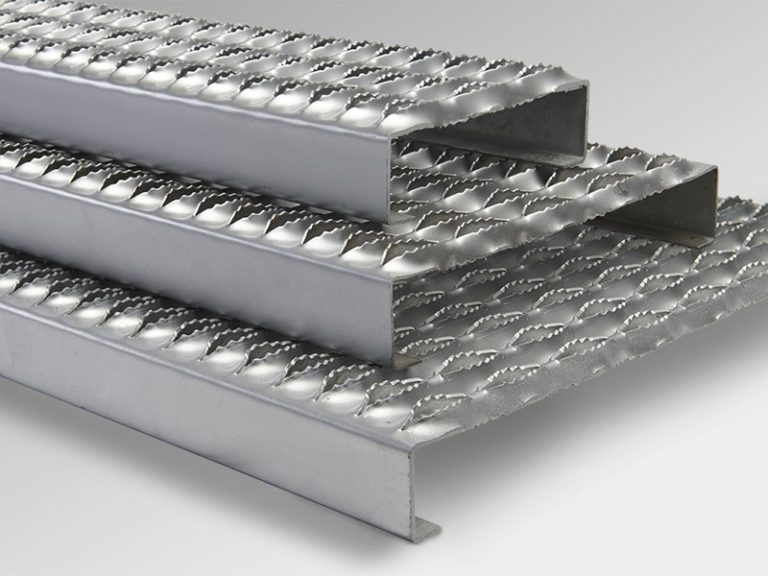

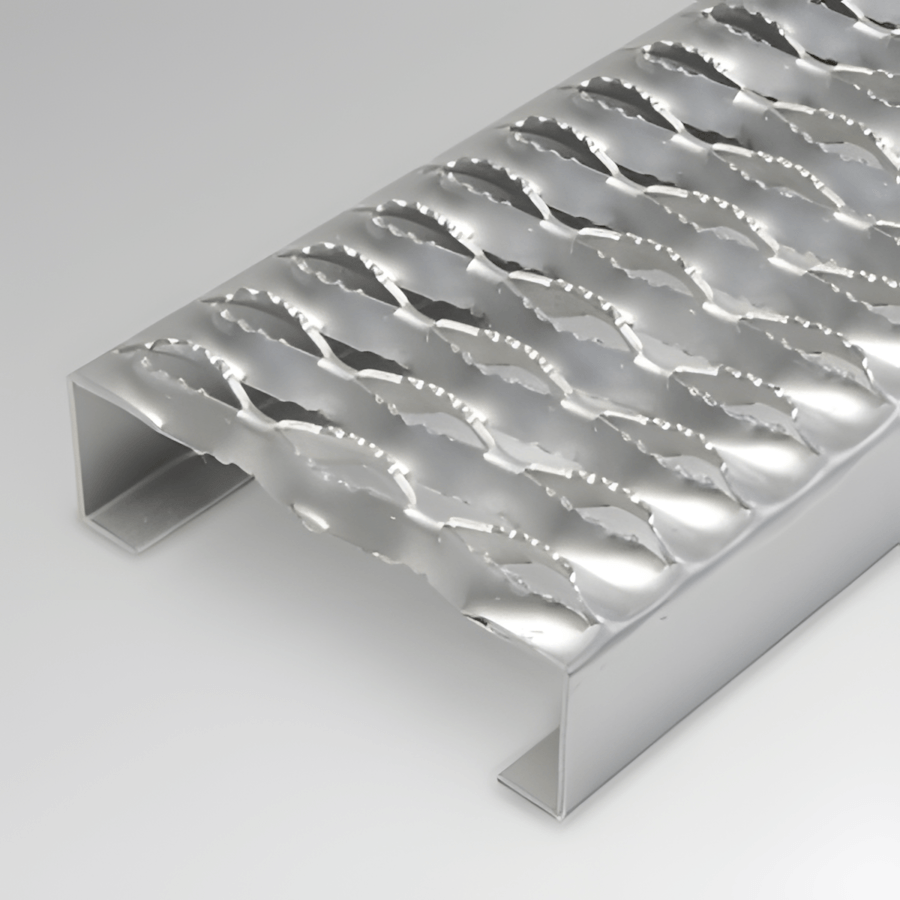

Grip Strut leads the safety grating industry with its versatile, one-piece metal plank design. This product features unique diamond-shaped openings and formed side channels. A heavily serrated, diamond matrix walking surface provides maximum multi-directional slip resistance, significantly enhancing workplace safety. With approximately 35% open area, the grating allows fluids and ice to pass through easily. Customers may request non-serrated surfaces for specific applications.

Grip Strut Safety Grating Details

Widths & Depths

Grip Strut planks come in a broad range of widths and depths to meet various application and load requirements.

Standard widths include:

• 2 Diamond (4 ¾” wide)

• 3 Diamond (7” wide)

• 4 Diamond (9-1/2” wide)

• 5 Diamond (11-3/4” wide)

• 8 Diamond (18-3/4” wide)

• 10 Diamond (24” wide)

Standard channel depths include 1-1/2”, 2”, 2-1/2”, and 3”.

We stock standard lengths of 10’ and 12’, and provide custom lengths upon special request.

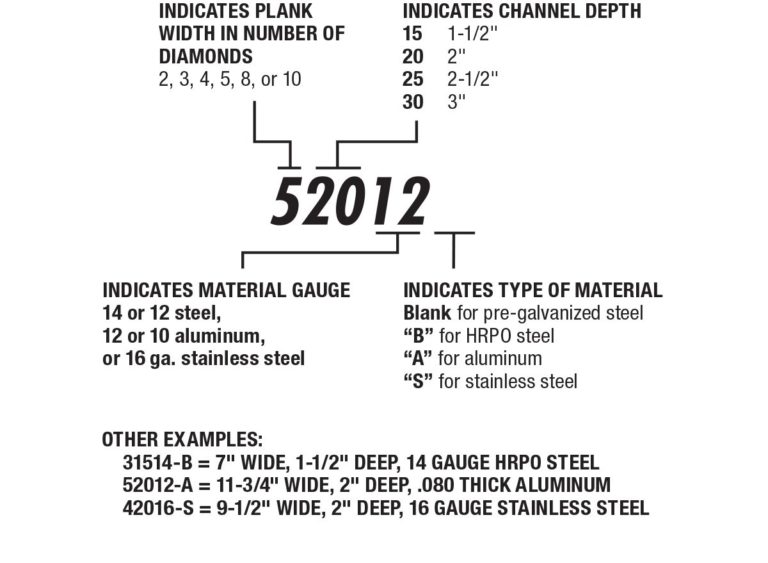

How to Order Grip Strut

Materials

Choose from these material options:

• Pre-galvanized steel, ASTM A924 G90, 14 or 12 gauge

• HRPO uncoated steel, ASTM A1011, 14 or 12 gauge

• 5052-H32 aluminum, ASTM B209, 12 gauge (.080) or 10 gauge (.100)

• 304 or 316L stainless steel, 16 gauge

Additional Grip Strut Products

Beyond plank grating, the Grip Strut surface also features in OSHA-compliant walkway channels, stair treads, ladder rungs, floor resurfacing materials, and Heavy Duty Grip Strut products. For more details, please refer to the related products section below.



Grip Strut Sizes & Options and Load Tables

Click to check out: Grip-Strut-2-Diamond-Load-Table Grip-Strut-3-Diamond-Load-Table Grip-Strut-5-Diamond-Load-Table Grip-Strut-8-Diamond-Load-Table Grip-Strut-10-Diamond-Load-Table Grip-Strut-Sizes-Options





Grip Strut Fasteners

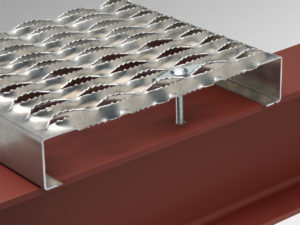

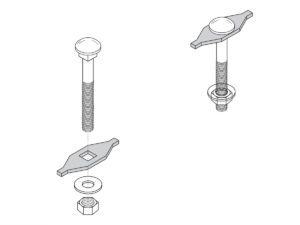

Grip Strut Diamond Washer Part No. 12262 Material: Pre-galvanized steel, 304 stainless steel, or aluminum Part includes: Diamond Washer Part does not include: 5/16″-18 carriage bolt, 5/16″ Flat washer, 5/16″ -18 hex nut

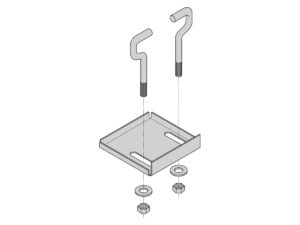

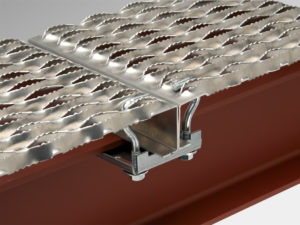

Anchor Clamp Assembly Part No. ACA-15 (for 1-1/2” grating depth) Part No. ACA-20 (for 2” grating depth) Part No. ACA-25 (for 2-1/2” grating depth) Part No. ACA-30 (for 3” grating depth) Material: Pre-galvanized steel Parts Include: 1 Anchor Plate, 2 each 3/8″-16 J-bolts, 2 each 3/8″ flat washers, 2 each 3/8″-16 hex nuts
