Description

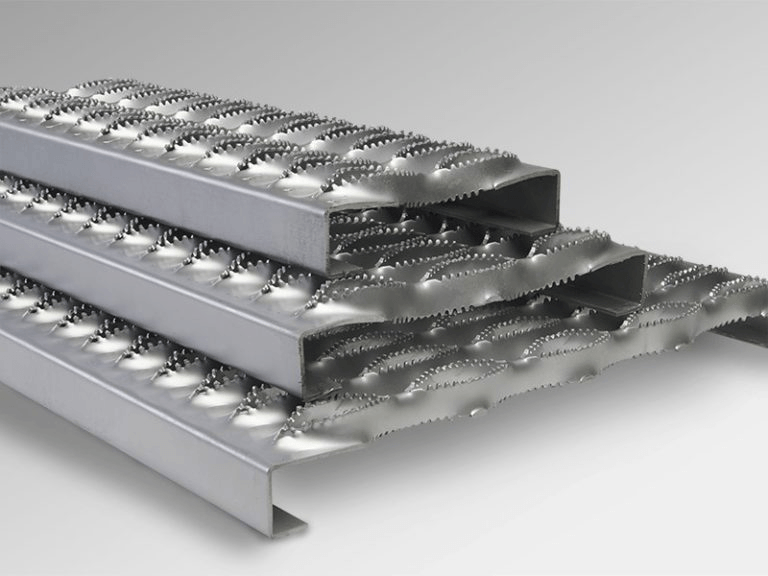

Heavy Duty Grip Strut Safety Grating Plank features a thicker gauge metal and a larger serrated diamond matrix opening than standard Grip Strut. This design supports heavier loads over longer spans while delivering maximum multi-directional slip resistance. The open diamond pattern effectively sheds mud, snow, ice, and liquids, preventing hazardous buildup.

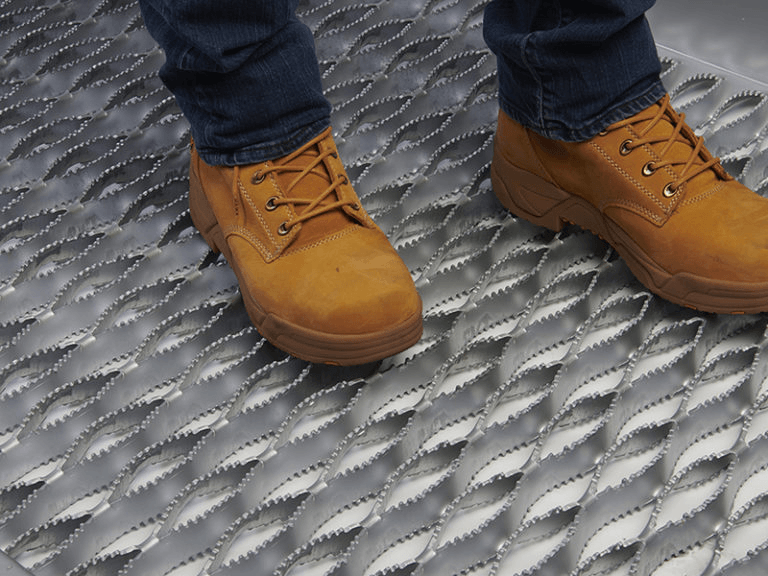

As a high strength-to-weight grating solution, Heavy Duty Grip Strut securely grips footwear in all directions. It retains all the advantages of regular Grip Strut while meeting demands for increased load capacity and extended spans. The larger diamond openings and thicker metal construction provide exceptional durability in demanding environments where debris, dirt, and stones could compromise safety.

Key Benefits:

• Maximum slip resistance in all directions

• High load-bearing capacity

• Extended span capabilities

• Low maintenance requirements

This heavy-duty grating serves applications requiring superior slip-resistant flooring with enhanced structural performance.

Heavy Duty Grip Strut Safety Grating Plank Details

Standard & Custom Sizes

Heavy Duty Grip Strut Safety Grating Planks come in various widths and depths to meet demanding application and load requirements. We stock standard 10′ and 12′ lengths for immediate availability and provide custom lengths upon special order.

Available plank widths include:

• 2 Diamond (9-1/4” wide)
• 3 Diamond (13-3/4” wide)
• 5 Diamond (23-1/4” wide)
• 6 Diamond (27-3/4” wide)
• 8 Diamond (36” wide)

Channel depths offered are 2”, 2-1/2”, 3” and 4”.

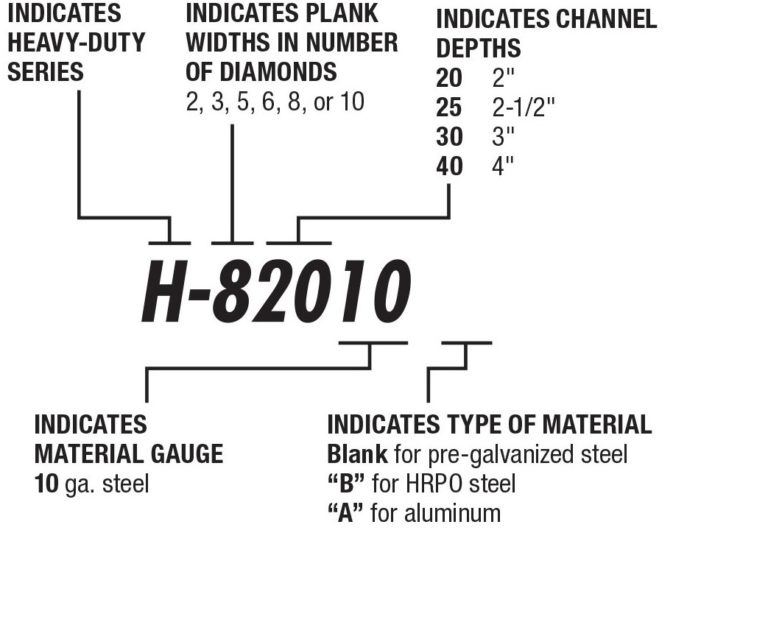

How to Order Heavy Duty Grip Strut



SIZES-AND-OPTIONS

8 Diamond Load Table

6 Diamond Load Table

5 Diamond Load Table

3 Diamond Load Table

2 Diamond Load Table

Walkway Channels
