Description

Safety Grating Floor Resurfacing

Traction Tread Flooring and Grip Strut Reconditioning Material serve as popular floor resurfacing solutions. Both products deliver the widely valued benefits of safety grating: excellent slip resistance, lightweight construction, and easy fabrication.

You can install these floor resurfacing products over new or existing floors and stairs.

We offer standard stock sheets or custom sheared-to-size products to meet your specific project requirements.

Safety Grating Floor Resurfacing Options

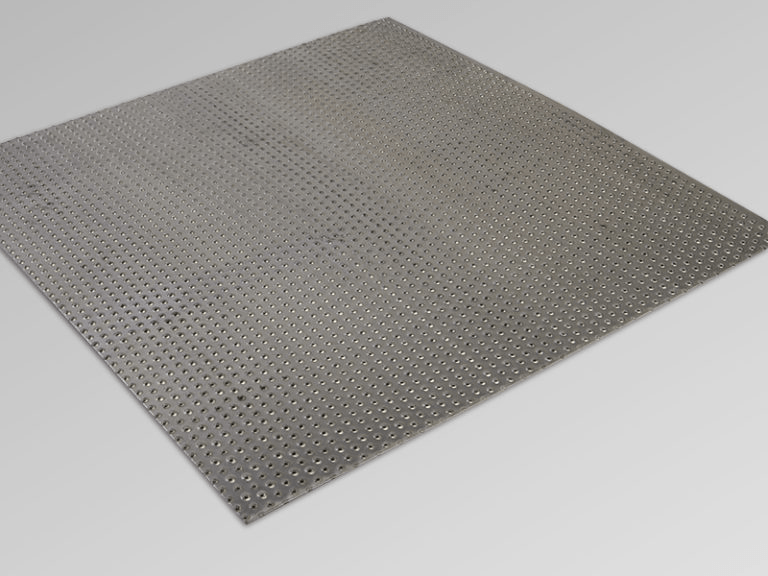

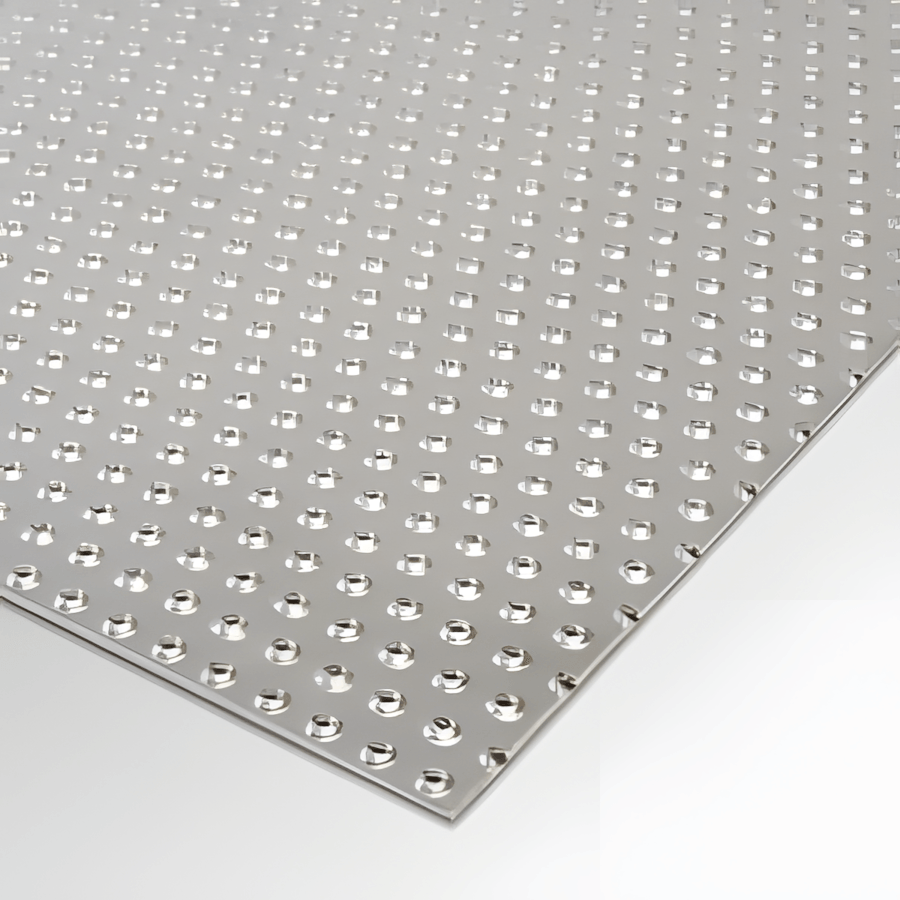

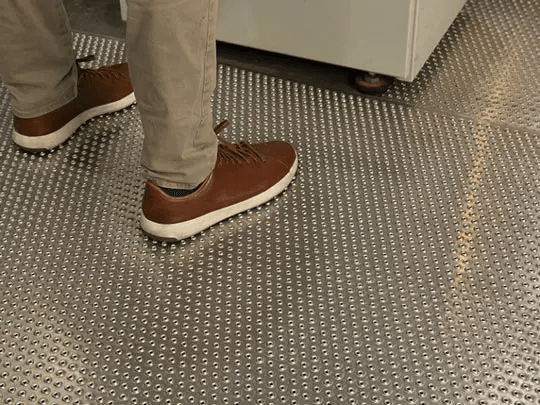

Traction Tread Flooring ADA‑compliant Traction Tread Flooring features a walking surface with hundreds of perforated buttons that provide slip resistance in all directions. The standard staggered button pattern shown is available from stock; we can produce specialty patterns upon special request. Standard stock sheet size is 36” × 120”, which we can shear to your specified dimensions. Available in 11, 13, and 16 gauge carbon steel, or 0.125” thick aluminum.



Gauge / Thickness	Catalog No.	Weight / SF
HRPO Carbon Steel or Pre-Galvanized Steel
11 ga.	TT-3611*	5.0 lbs
13 ga.	TT-3613*	3.8 lbs
16 ga.	TT-3616*	2.5 lbs
*Add -B catalog # of HRPO products
Aluminum Alloy 5052-H32
0.125″	TT-36.125-A	1.6 lbs

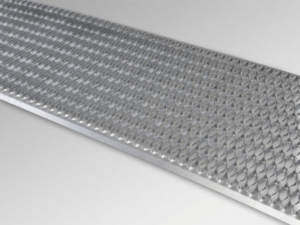

Grip Strut Reconditioning Material When you select Grip Strut Reconditioning Material, its standard serrated, open‑diamond matrix walking surface delivers maximum slip resistance. This product is especially popular for areas where liquids and lubricants frequently spill onto floors or platforms. Standard widths include: 6‑1/4”, 8‑9/16”, 10‑7/8”, 13‑3/16”, 20‑1/8”, and 24‑3/4” Available in 12 or 14 gauge carbon steel, 16 gauge stainless steel, or 0.100” and 0.080” thick aluminum.

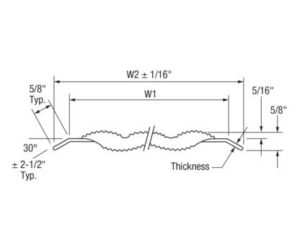

Dimension	2-Diamond	3-Diamond	4-Diamond
W1	5-3/16″	7-1/2″	9-13/16″
W2	6-1/4″	8-9/16″	10-7/8″
Dimension	5-Diamond	8-Diamond	10-Diamond
W1	12-1/8″	19-1/16″	23-11/16″
W2	13-3/16″	20-1/8″	24-3/4″
