Description

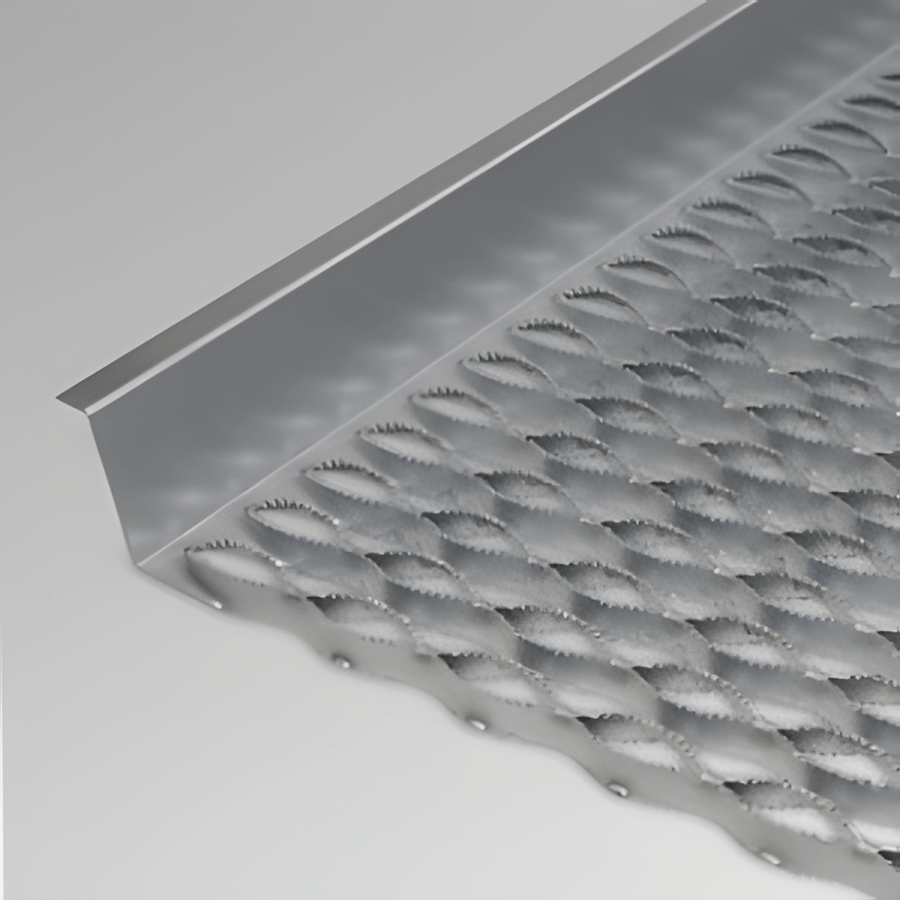

Safety grating walkway channels feature Grip Strut, Perf-O Grip, and Heavy Duty Grip Strut walking surfaces. These one-piece planks include upturned side channels that function as OSHA-compliant toe boards. Walkway channels serve as excellent solutions for elevated walkways and conveyor catwalks.
Key benefits include:
-
Slip-resistant walking surfaces
-
Ideal for continuous span applications
-
Cost-effective installation and maintenance
Types of Safety Grating Walkway Channels

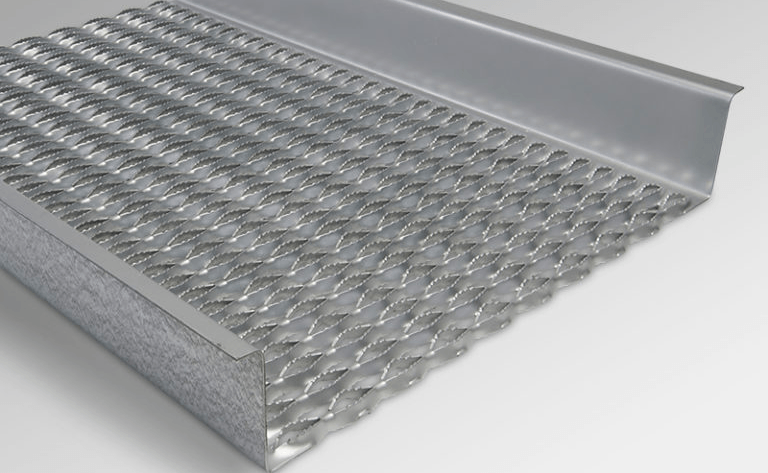

Grip Strut Walkway ChannelsGrip Strut walkway channels incorporate the same open diamond matrix design as standard Grip Strut planks. This surface safely drains liquids, allows debris to pass through, and provides excellent multi-directional slip resistance. Grip Strut Walkway specifications:
|
 |
 |

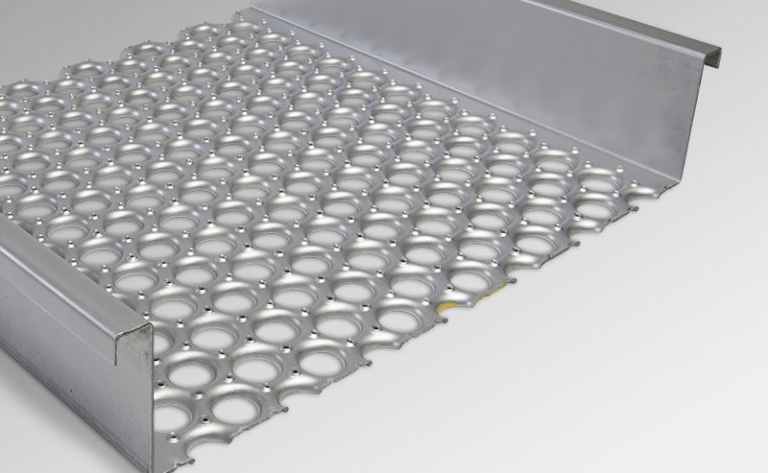

Perf-O Grip Walkway ChannelsPerf-O Grip walkway channels feature large debossed holes surrounded by slip-resistant perforated buttons. Like the planks, the resilient walking surface cushions foot impact, reducing worker fatigue. Perf-O Grip Walkway specifications:
|

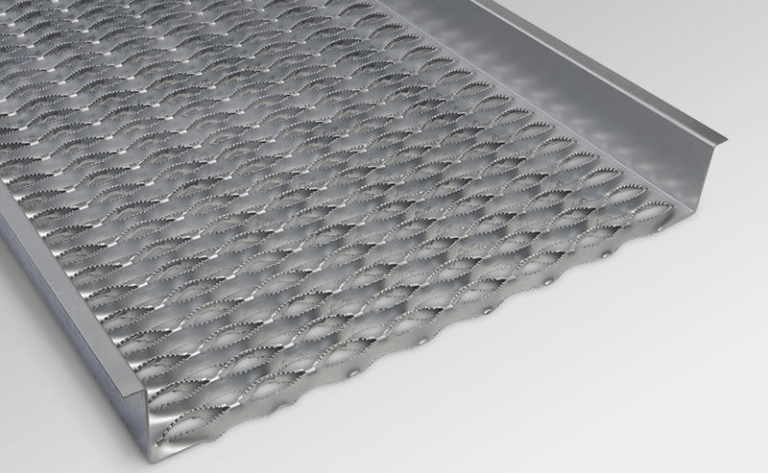

Heavy Duty Grip Strut Walkway ChannelsThese walkway channels use the larger, heavily serrated diamond matrix of Heavy Duty Grip Strut and consist of thicker steel, allowing for longer unsupported spans. Heavy Duty Grip Strut Walkway specifications:
|
 |
Safety Grating Walkway Channel Splice Kits

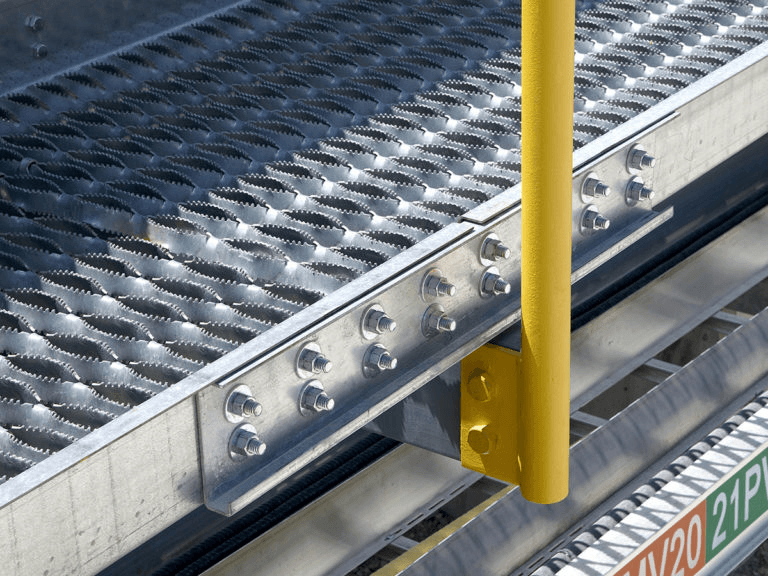

30″ Long Walkway Splice Kit
-
Grip Strut 30” Walkway Channel Part #: SP-10DU-30
-
Perf-O Grip 30” Walkway Channel Part #: POG-WS-30
-
Heavy Duty Grip Strut 30” Walkway Part#: P-H-SP-U
Material: Pre-galvanized steel
Kit includes: 2 splice plates, hex bolts, hex nuts, and washers

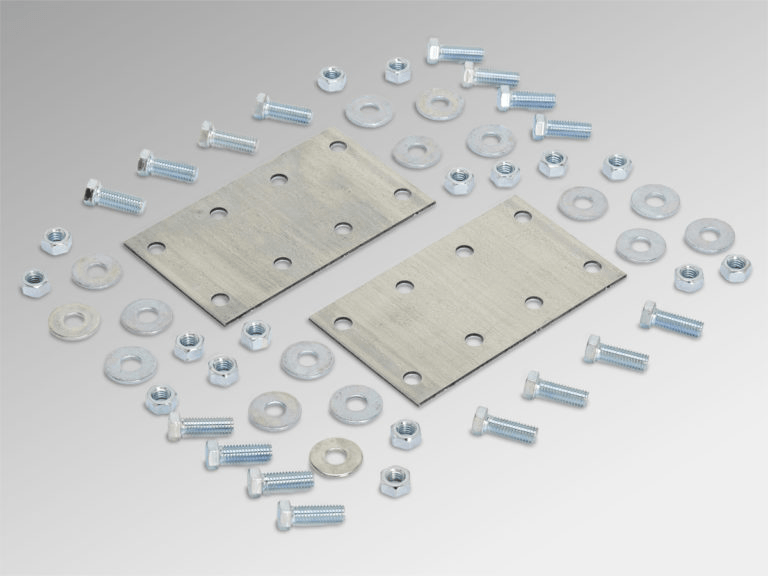

Grip Strut 7″ Long Walkway Splice Kit
Designed exclusively for standard Grip Strut, this kit joins channels that meet over supports.
Part #: SP-10DU-7
Material: Pre-galvanized steel
Kit includes: 2 splice plates, hex bolts, hex nuts, and washers

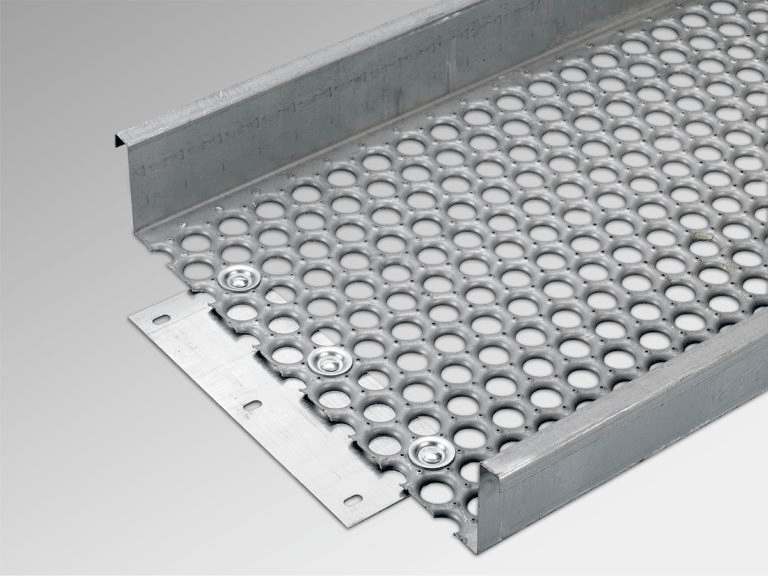

Perf-O Grip Surface Splice Kits
For Perf-O Grip widths exceeding 12”, we recommend using surface splice kits to mechanically join planks or walkway channels end-to-end.
-

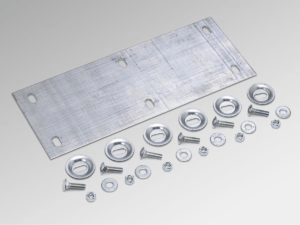

Part No. POG-ES-10: For 18” wide planks
-
Part No. POG-ES-13: For 24” wide planks or walkway channels
-
Part No. POG-ES-16: For 30” wide planks or walkway channels
-
Part No. POG-ES-20: For 36” wide planks or walkway channels
Each kit includes carriage bolts, flat washers, and bolt seats.
Walkway Channels Sizes & Options and Load Tables
Grip Strut Walkway Channels Sizes Options
Perf-O Grip Walkway Channels Sizes Options
Heavy Duty Grip Strut Walkway Channels Sizes Options
Safety Grating Walkway Fasteners
Grip Strut Fasteners
| Grip Strut Diamond Washer Part No. 12262 Material: Pre-galvanized steel or 304 stainless steel Part includes: Diamond Washer Hardware not included: 5/16″-18 carriage bolt, 5/16″ flat washer, 5/16″-18 hex nut |
  |
Perf-O Grip Fasteners
| Perf-O Grip Bolt Washer Seat Part No. PBOLTSEAT Material: Pre-galvanized steel Part includes: Bolt washer seat Hardware not included: 3/8″-16 carriage bolt, 3/8″ flat washer, 3/8″-16 hex nut |
  |
| Perf-O Grip Surface Splice Kits
As widths of Perf-O Grip increase beyond 12”, it is recommended to use surface splice kits to mechanically join lengths of planks or walkway channels end-to-end.
|
  |
Heavy Duty Grip Strut Fasteners
| Heavy Duty Grip Strut Hold-Down Clip Part No. H-BC-10 Material: Pre-galvanized steel or stainless steel Part includes: Hold-down clip Hardware not included: 3/8” square shank carriage bolts, nuts, or washers |
  |
