Selecting the correct MIL Spec Hesco Barrier depends on your project’s required wall height, structural load, footprint availability, and threat profile (e.g., small-arms fire, vehicle ramming, or hydraulic flood pressure). Standard Hesco barrier models range from MIL 1 (large perimeter walls) to MIL 19 (compact barrier solutions). For general military perimeter security, MIL 1 and MIL 7 are the global industry standards, whereas MIL 2 and MIL 5 are ideal for low-profile road barriers and bund creation.

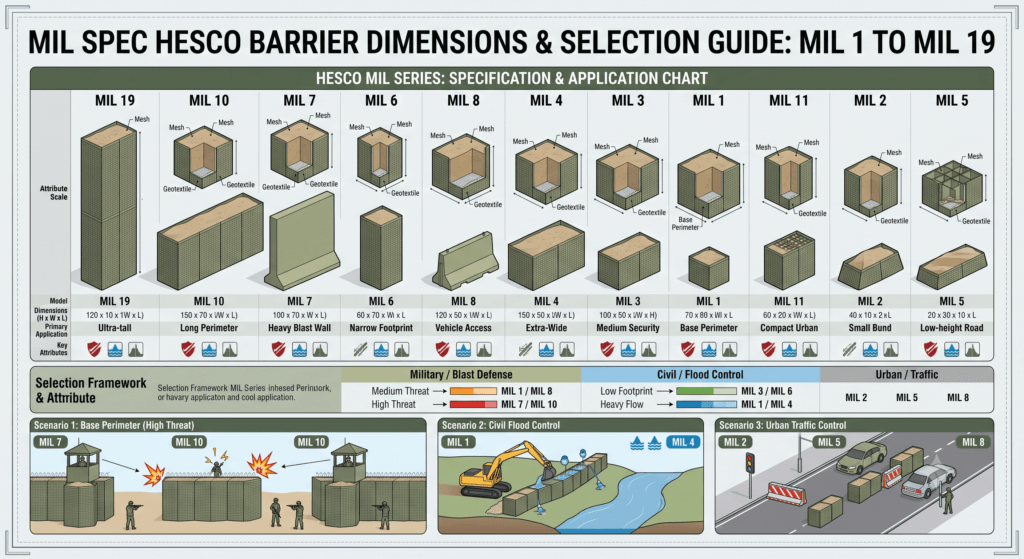

MIL Spec Hesco Barrier Unit for Perimeter Protection (MIL 1 to MIL 19 Guide)
Complete Hesco MIL Series Specification Chart
Model
Height
Width
Length
Cells
Primary Application
MIL1
54”(1.37m)
42”(1.06m)
32’9”(10m)
4+5 cells
Base perimeter walls, ammunition stores, flood levees
MIL2
24”(0.61m)
24”(0.61m)
4′(1.22m)
2 cells
Small bunds, path dividers, temporary road blocks
MIL3
39”(1.00m)
39”(1.00m)
32’9”(10m)
5+5 cells
Medium perimeter security, soil retention
MIL4
39”(1.00m)
60”(1.52m)
32’9”(10m)
5+5 cells
Extra-wide defensive barriers, blast mitigation
MIL5
24”(0.61m)
24”(0.61m)
10′(3.05m)
5 cells
Low-height road security, erosion control
MIL6
66”(1.68m)
24”(0.61m)
10′(3.05m)
5 cells
High-aspect perimeter shielding with narrow footprint
MIL7
87”(2.21m)
84”(2.13m)
91′(27.74m)
4+4+5 cells
Heavy blast walls, Forward Operating Base (FOB) protection
Ultra-tall force protection and observation post walls
Step-by-Step Selection Framework
Project Requirement
Threat / Application Level
Recommended Unit Model
Military / Blast Defense
High Threat
MIL 7 / MIL 10
Medium Threat
MIL 1 / MIL 8
Civil / Flood Control
Heavy Flow
MIL 1 / MIL 4
Low Footprint
MIL 3 / MIL 6
Recommended Models:MIL 7 (2.21m high) or MIL 10.
Reasoning: The height (2.21m) shields personnel from direct line-of-sight small-arms fire, while the 2.13m width provides the structural mass needed to absorb rocket-propelled grenades (RPGs) and explosive blast waves.
Scenario 2: Civil Flood Control & Emergency Levees
Recommended Models:MIL 1 or MIL 4.
Reasoning: MIL 1 offers an ideal balance between height (1.37m) and volume capacity, allowing rapid installation along riverbanks using standard excavators.
Scenario 3: Urban Checkpoints & Traffic Control
Recommended Models:MIL 2, MIL 5, or MIL 8.
Reasoning: These units feature a smaller base footprint (0.61 m width), making them suitable for positioning along paved roads without blocking traffic lanes.
