صريف مغلق سوج
The Swage-Locked Grating manufacturing process utilizes swaging and forming to permanently secure crossbars within the diamond-shaped openings of bearing bars. This method effectively prevents rotation or movement of the components. The resulting product demonstrates an outstanding strength-to-weight ratio while maintaining minimal deflection under heavy loads. These characteristics ensure superior safety for pedestrian traffic in demanding environments like high-rise buildings and offshore platforms.

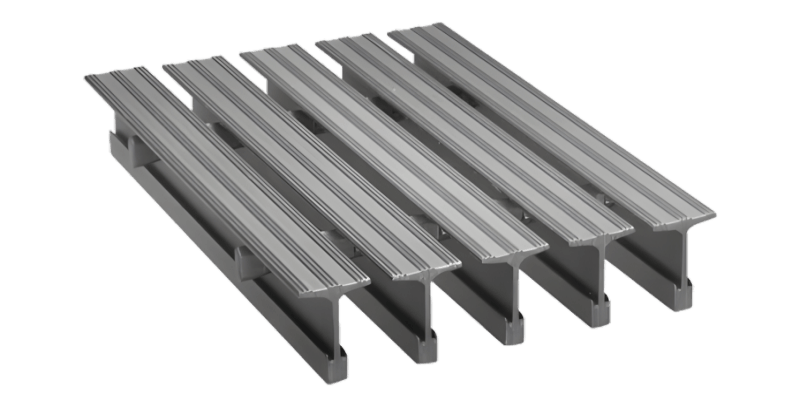

ABX Swage-Locked Grating primarily employs lightweight aluminum material. We provide three different bar shape configurations to meet various requirements. Choose from standard Rectangular bars, efficient I-Bar profiles, or our specialized T-Bar design called SAFE-T-GRID®. Our inventory includes all necessary compatible accessories. These components guarantee seamless integration of your selected grating into any architectural or industrial design scheme.
Our Aluminium Grating is certified slip-resistant and has undergone ASTM testing for strength, so you don’t need to worry about it bending and snapping.
تحديد
Material: Stainless Steel Grating / Aluminium Grating / Carbon Steel Grating.
Finish: Mill finish, Clear Anodized, Powder Coated, Galvanised

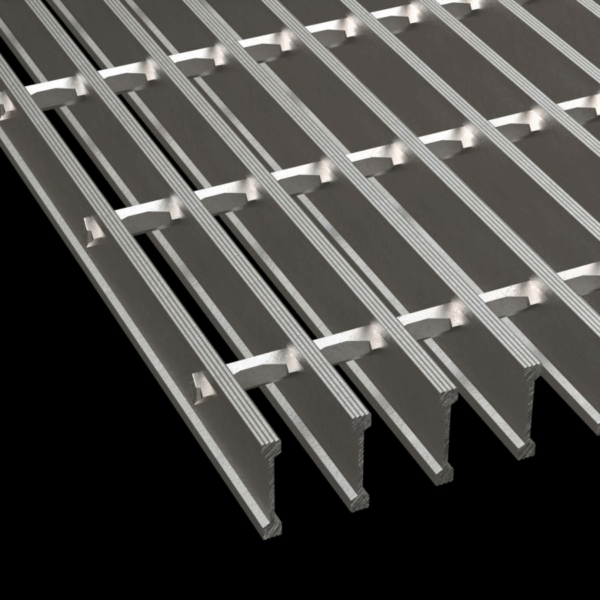

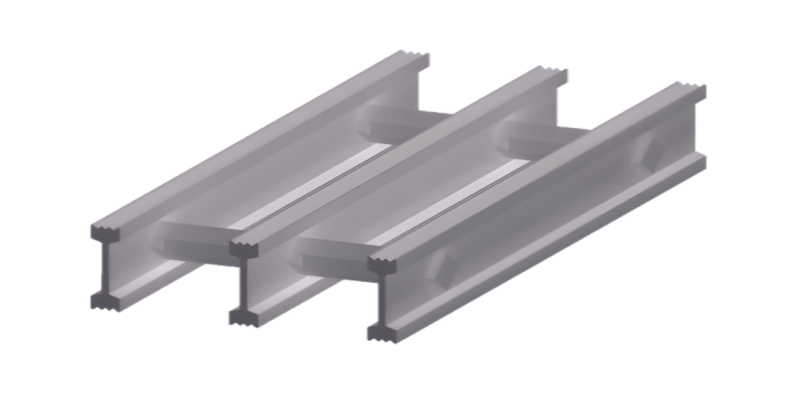

Bearing Bar Type: Flat-Bar, I-Bar and T-Bar
Surface Type: Smooth / Serrated
Thickness: 20mm-60mm
Sizes Available: Standard panels and fabrication available

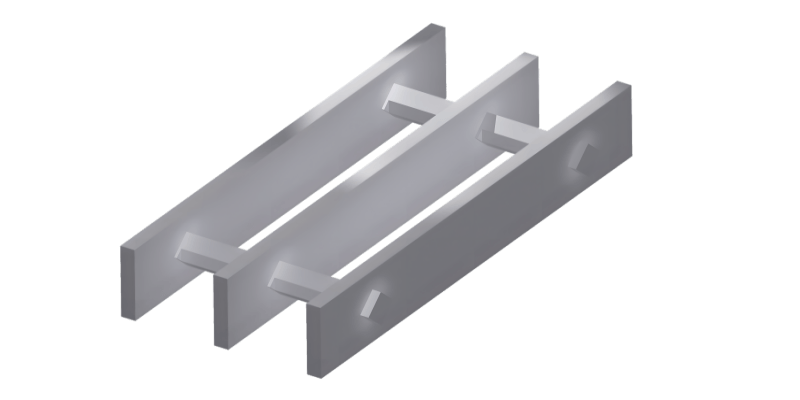

Flat-Bar / I-Bar / T-Bar Grating Bearing Bar
|
|
|
لحام قضبان الصلب ومشابك التثبيت
| يؤدي اللحام إلى إنشاء تركيبات دائمة فائقة الجودة، في حين توفر أدوات التثبيت الميكانيكية (المعروفة أيضًا باسم المشابك الشبكية) حلولاً عندما يجب إزالة الشبكة أو عندما يكون اللحام غير عملي. يشير نمط اللحام الموصى به (الموضح على اليمين) إلى الحد الأدنى من مسافة التثبيت لتطبيقات المشاة. تتطلب تطبيقات المركبات عادةً لحامًا إضافيًا، مع متطلبات حجم وتباعد محددة تحددها السلطة المحددة للمشروع. |  |
 تتوفر هذه المشابك المنحنية، التي تربط بين قضيبين محملين، في الفولاذ المجلفن أو الفولاذ المقاوم للصدأ أو الألومنيوم. تتميز بفتحات مسمار قياسية مقاس 5/16 بوصة. لا يتم تضمين البراغي أو البراغي أو أجهزة التوصيل الأخرى ويجب توفيرها بشكل منفصل. |  يسمح التباعد الضيق للشبكة الشبكية القريبة بتغطية أو طحن قضبان المحامل لاستيعاب أكتاف البراغي. لا يتم تضمين البراغي ذات الرأس المسطح أو أدوات التثبيت ذاتية الثقب ويجب توفيرها بشكل منفصل. |  These plates, pre-punched with holes, are welded between the bearing bars to facilitate bolting to the supporting structure. Bolts, screws, or other connecting hardware are not included and must be supplied separately. |
 يتم تركيب هذه المثبتات الميكانيكية من السطح العلوي للشبكة، مما يؤدي إلى إنشاء اتصال احتكاك مع الحافة الداعمة. يتم تركيب المشابك على شكل حرف "G" بسهولة دون الحاجة إلى الحفر أو اللحام. |  This formed clip is designed to capture two bearing bars spaced at 11/16″ on center. Flat countersunk screws and other required fastening hardware are not included and must be supplied separately. |  مقطع ضيق الشكل يستخدم لالتقاط شريط محمل واحد في التطبيقات ذات المسافات المحدودة، عادةً 11/16 بوصة في المنتصف. لا يتم تضمين براغي الغطاء وأدوات التثبيت الضرورية الأخرى ويجب توفيرها بشكل منفصل. |
| Bearing Bar (mm) | Cross Bar (mm) | Center Pitch (mm) |
|---|---|---|
| Flat-Bar Grating | ||
| 25 × 2 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 25 × 3 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 25.4 × 4.76 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 30 × 5 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 31.75 × 4.76 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 32 × 3 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 35 × 5 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 38 × 3 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 38 × 5 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 40 × 3 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 40 × 4 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 40 × 5 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 40 × 12 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 45 × 3 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 45 × 5 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 50 × 3 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 50 × 4.5 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 55 × 3 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 60 × 3 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 60 × 12 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 65 × 4.96 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 65 × 5 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| I-Bar Grating | ||
| 26.8 × 6.25 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 25.4 × 6.35 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 65 × 6.35 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 50.8 × 6.35 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| T-Bar Grating | ||
| 32 × 60 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
| 28 × 52 | 8 × 8 | 30 × 100, 40 × 100, 60 × 100 |
Advantages of Aluminium Swage-Locked Grating
بناء خفيف الوزن
Aluminum grating weighs only one-third of steel, significantly reducing structural load. This makes it ideal for rooftop platforms, elevated walkways, and cantilevered structures while substantially cutting transportation and installation costs.
Superior Corrosion Resistance
The natural oxide layer on aluminum provides excellent protection against atmospheric corrosion without additional coatings. It performs exceptionally well in coastal areas and chemical plants, offering a service life exceeding 30 years.
Excellent Conductivity
Aluminum’s inherent electrical conductivity ensures safe static electricity dissipation, making it particularly suitable for flammable environments and electronics workshops where anti-static properties are crucial.
Minimal Maintenance
The self-healing oxide layer eliminates the need for regular anti-corrosion maintenance. Lifecycle maintenance costs are reduced by over 70% compared to steel grating.
Eco-Friendly & Recyclable
Aluminum is 100% recyclable with only 5% of the energy required for primary production. This supports green building certifications and sustainable development goals.
Low-Temperature Performance
Maintains excellent toughness at temperatures as low as -50°C without cold brittleness, making it perfect for cold storage facilities and northern严寒 regions.
Aesthetic Durability
The natural silver finish of aluminum provides a modern industrial appearance, while anodizing offers various color options to combine functionality with visual appeal.
Quick Installation
The modular design and lightweight nature enable 40% faster installation compared to traditional steel grating, especially beneficial for renovation projects with tight schedules.
Aluminum Swage-Locked Grating achieves the optimal balance between weight, durability, and maintenance costs through the perfect combination of material properties and innovative manufacturing technology.

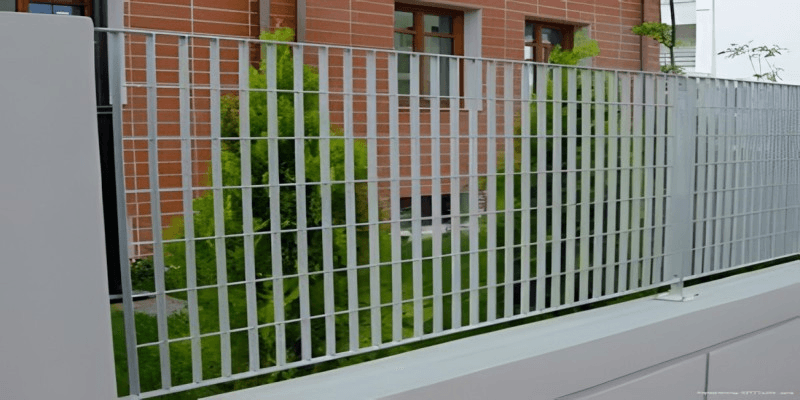

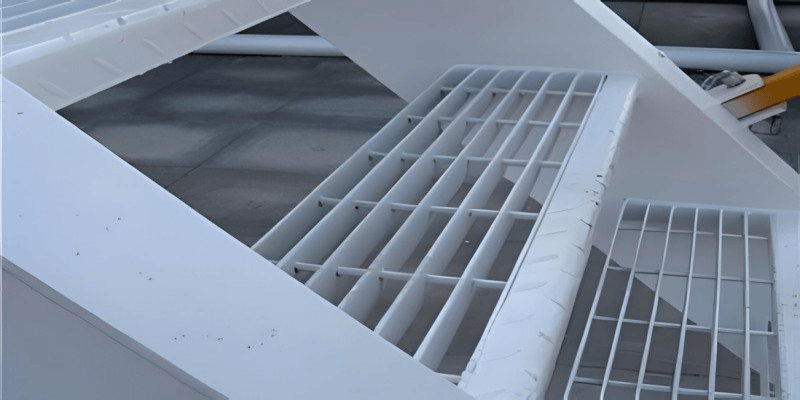

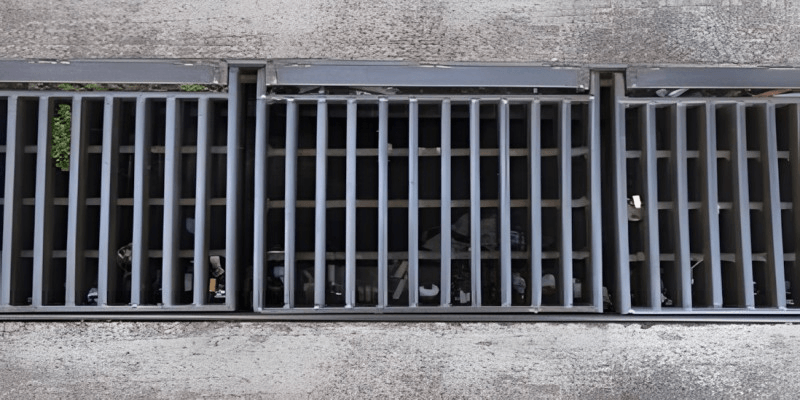

Applications Of Swage-Locked Grating

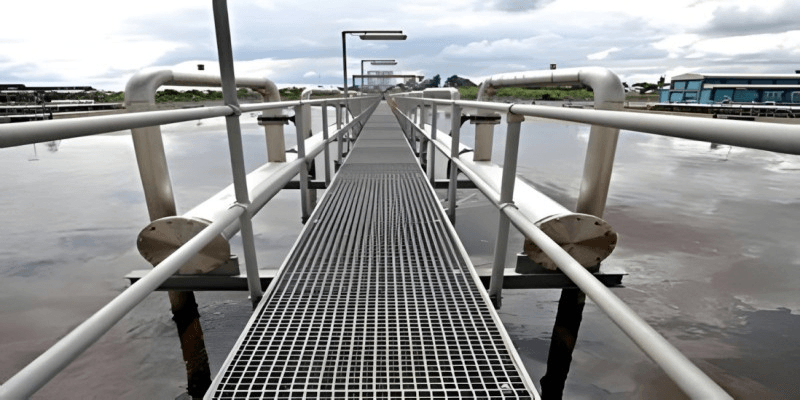

Industrial Platforms & Walkways
Swage-locked grating provides durable flooring for industrial facilities. Manufacturing plants install it as mezzanine walkways. Chemical processing plants utilize its corrosion resistance. Warehouses employ it for elevated work platforms.
Energy & Power Generation
Power plants rely on swage-locked grating for critical areas. Nuclear facilities choose it for radiation zones. Oil refineries install it in process areas. Renewable energy projects specify it for long service life.
Marine & Offshore Applications
Shipbuilders select swage-locked grating for vessel interiors. Offshore platforms depend on its saltwater resistance. Port facilities use it for cargo handling areas. Marine terminals install it in tidal zones.
Transportation Infrastructure
Airports choose swage-locked grating for passenger bridges. Railway stations utilize it for platform edges. Highway maintenance requires it for catwalks. Bridge engineers specify it for inspection walkways.
Water Treatment Facilities
Treatment plants install swage-locked grating throughout. Pump stations use it for wet area flooring. Filtration buildings employ it for chemical resistance. Processing centers rely on its non-slip properties.
Commercial & Public Buildings
Architects specify swage-locked grating for aesthetic appeal. Shopping malls use it for decorative balconies. Stadiums install it for crowd control areas. Public spaces choose it for low maintenance.
Food & Pharmaceutical Industry
Processing plants require swage-locked grating’s cleanability. Breweries utilize its corrosion resistance. Pharmaceutical facilities choose its hygienic properties. Food production areas need its easy maintenance.
Special Applications
Mining operations depend on its heavy-duty performance. Aerospace facilities choose its precision engineering. Research laboratories require its chemical resistance. Emergency services utilize its reliable safety features.
Each application benefits from swage-locked grating’s unique combination of strength, corrosion resistance and maintenance-free performance, making it the preferred choice for demanding environments worldwide.
