Zavarena čelična rešetka

Standard-Duty Welded Steel Grating

Materials: Carbon Steel / Galvanized Steel / Stainless Steel / Aluminium
Surface: Smooth / Serrated
Bearing bar size: 1″, 1-1/4″, 1-1/2″, 1-3/4″, 2″, 2-1/4″, 2-1/2″.
Bearing bar thickness: 1/8″ , 3/16″
Cross bar size: 1/4″, 5/16″ and 3/8″ Square Twisted Rod
Cross bar spacing: 2″ and 4″.
Bar spacing: 11/16″, 15/16″, 1-3/16″

Heavy-Duty Welded Steel Grating

Materials: Carbon Steel / Galvanized Steel / Stainless Steel
Surface: Smooth / Serrated
Bearing bar size: 1″, 1-1/4″, 1-1/2″, 1-3/4″, 2″, 2-1/4″, 2-1/2″, 3″, 3-1/2″, 4″, 4-1/2″, 5″, 5-1/2″, 6″.
Bearing bar thickness: 1/4″, 5/16″ and 3/8″.
Cross bar size: 1/4″, 5/16″ and 3/8″ Square Twisted Rod.
Cross bar spacing: 2″ and 4″.
Bar spacing: 15/16″, 1-3/16″, 1-7/8″ and 2-3/8″.

Kategorija: Marka: ID proizvoda: 24754

Opis

Zavarena čelična rešetka is a rigid, open grid made by welding steel bars (bearing bars and cross bars) at right angles to form a strong, one-piece panel. It is a popular and versatile material used for flooring, walkways, platforms, and drainage covers due to its high strength, durability, and corrosion resistance when coated.

Welded Steel Grating Nomenclature

teel Grating Specifications

  • Bearing Bars – Load carrying, span of grating
  • Cross Bars – Connecting bars, runs along width of grating
  • Završiti – Coating applied-painted black, galvanized
  • Serrated – Notching process for non-slip surface
  • Widths – Overall dimension measured perpendicular to bearing bars
  • Span – Distance running along direction of bearing bars
  • Banding – Bar of the same size as bearing bar used to close open ends
  • Kick Plate – Flat bar welded to outer edge with projection above grating

Welded Grating Nomenclature

Tehnički podaci

TECHNICAL DETAILS

Standard-Duty Welded Steel Grating

Materials: Carbon Steel / Galvanized Steel / Stainless Steel / Aluminium
Surface: Smooth / Serrated
Bearing bar size: 1″, 1-1/4″, 1-1/2″, 1-3/4″, 2″, 2-1/4″, 2-1/2″.
Bearing bar thickness: 1/8″ , 3/16″
Cross bar size: 1/4″, 5/16″ and 3/8″ Square Twisted Rod
Cross bar spacing: 2″ and 4″.
Bar spacing: 11/16″, 15/16″, 1-3/16″

11W4
11-W-4

19W4
19-HW-4

15W4
15-HW-4

Heavy-Duty Welded Steel Grating

Materials: Carbon Steel / Galvanized Steel / Stainless Steel
Surface: Smooth / Serrated
Bearing bar size: 1″, 1-1/4″, 1-1/2″, 1-3/4″, 2″, 2-1/4″, 2-1/2″, 3″, 3-1/2″, 4″, 4-1/2″, 5″, 5-1/2″, 6″.
Bearing bar thickness: 1/4″, 5/16″ and 3/8″.
Cross bar size: 1/4″, 5/16″ and 3/8″ Square Twisted Rod.
Cross bar spacing: 2″ and 4″.
Bar spacing: 15/16″, 1-3/16″, 1-7/8″ and 2-3/8″.

15W4
15-HW-4

19W4
19-HW-4

30W4
30-HW-4

38W4
38-HW-4

Applications Of Welded Steel Grating

Zavarena čelična rešetka serves countless industrial applications. It provides strong support for heavy equipment. This product allows light and air to pass through. Workers safely walk on these durable panels. Factories install them as operating platforms. They work perfectly in power plants. Wastewater treatment plants use them widely.

Industrijske platforme i šetnice

Standard-Duty Welded Bar Grating creates sturdy work platforms. It supports heavy machinery and tanks. Maintenance crews access equipment easily. These grates serve as safe stair treads. Their anti-slip surface prevents accidents. They form secure walkways between equipment. Oil refineries rely on their strength.

Architectural & Municipal Engineering

Cities choose Heavy-Duty Welded Bar Grating for infrastructure. It makes beautiful commercial building ceilings. Shopping malls use it for ventilation layers. Municipal projects specify it for trench covers. These grates protect tree roots in cities. Pedestrian bridges use them as decking. They reduce structure weight effectively.

Energy & Environmental Protection

Power plants need durable Welded Steel Grating. It forms boiler platforms and walkways. Nuclear facilities use it for maintenance access. Wastewater plants install it everywhere. These grates resist chemical corrosion perfectly. They serve in flue gas purification systems.

Transportation Applications

Ships use Welded Steel Grating as decks. It provides slip-resistant surfaces offshore. Marine platforms choose it for walkways. Some highways install it as guardrails. Ports utilize it for corrosion-resistant platforms. The material withstands seawater environments.

Specialized Applications

Agriculture uses Welded Steel Grating for floors. It creates ventilation in food processing plants. Warehouses install it for mezzanine flooring. Some construction projects need it for scaffolding. Certain industries use it for material screening.

Material Selection For Different Scenarios

  • Carbon steel grating suits most industrial applications. Hot-dip galvanizing provides corrosion resistance.
  • Stainless steel (304/316) handles extreme environments like coastal areas and chemical plants.
  • Aluminum grating offers a lightweight solution for marine and architectural projects.

Each material delivers specific advantages for different operational conditions and longevity requirements.

Stezaljke za zavarivanje i pričvršćivanje rešetki od čeličnih šipki

Zavarivanjem se stvaraju vrhunske trajne instalacije, dok mehanički pričvršćivači (poznati i kao rešetkaste kopče) pružaju rješenja kada se rešetka mora ukloniti ili je zavarivanje nepraktično.

Preporučeni uzorak zavarivanja (ilustriran s desne strane) označava minimalni razmak pričvršćivača za pješačke primjene. Primjene u vozilima obično zahtijevaju dodatno zavarivanje, s posebnim zahtjevima za veličinom i razmakom koje određuje tijelo koje specificira projekt.

ILUSTRACIJA-MINIMALNI-UZORAK-ZAVA
ILUSTRACIJA-MINIMALNI-UZORAK-ZAVA

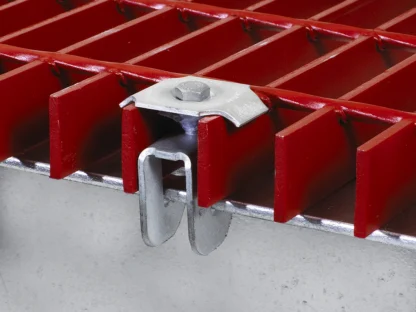

Spojnica za sedlo
Spojnice za sedlo

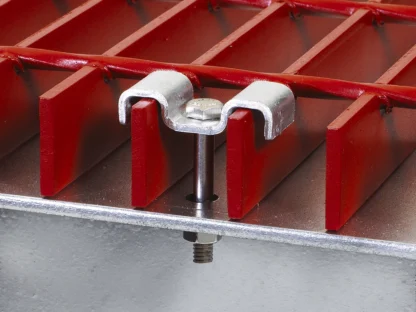

Ove savijene kopče, koje premošćuju dvije nosive šipke, dostupne su od pocinčanog čelika, nehrđajućeg čelika ili aluminija. Imaju standardne rupe za vijke od 5/16″. Vijci, vijci ili drugi hardver za spajanje nisu uključeni i moraju se isporučiti zasebno.

KONTRA-UPOZNALA-SA-VIJAKOM

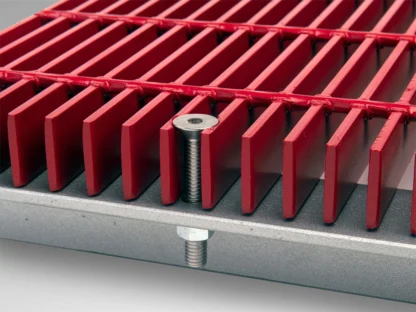

Upuštene zemlje

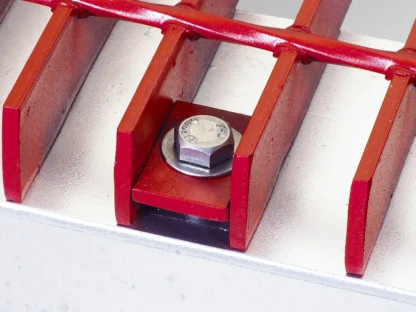

Uzak razmak mrežaste rešetke omogućuje upuštanje ili glodanje nosivih šipki za prilagodbu ramenima vijaka. Vijci s ravnom glavom ili samobušeći pričvršćivači nisu uključeni i moraju se isporučiti zasebno.

ZAVAR-LUG
Ušice za zavarivanje

Workers weld these pre-punched plates between the bearing bars to facilitate bolting to the supporting structure. Clients must supply bolts, screws, or other connecting hardware separately.

G-kopča
Isječci "G".

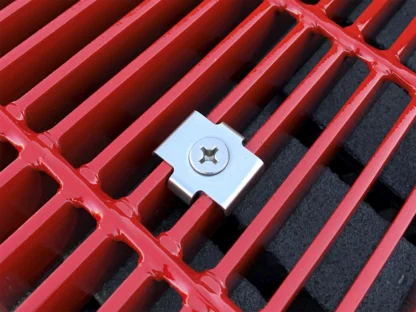

Instalirani s gornje površine rešetke, ovi mehanički pričvršćivači stvaraju tarnu vezu s potpornom prirubnicom. “G” kopče se jednostavno postavljaju bez potrebe za bušenjem ili zavarivanjem.

E-11-KLIP
Isječci “E-11”.

This formed clip captures two bearing bars spaced at 11/16″ on center. Clients must supply flat countersunk screws and other required fastening hardware separately.

J-KLIP-NA-BAR-REŠETKA
Isječci "J".

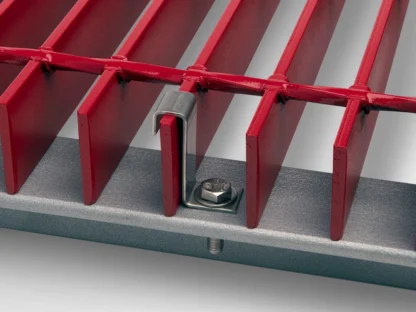

Uska oblikovana kopča koja se koristi za hvatanje jedne nosive šipke u primjenama s ograničenim razmakom, obično 11/16″ u sredini. Vijci s poklopcem i ostali potrebni hardver za pričvršćivanje nisu uključeni i moraju se isporučiti zasebno.

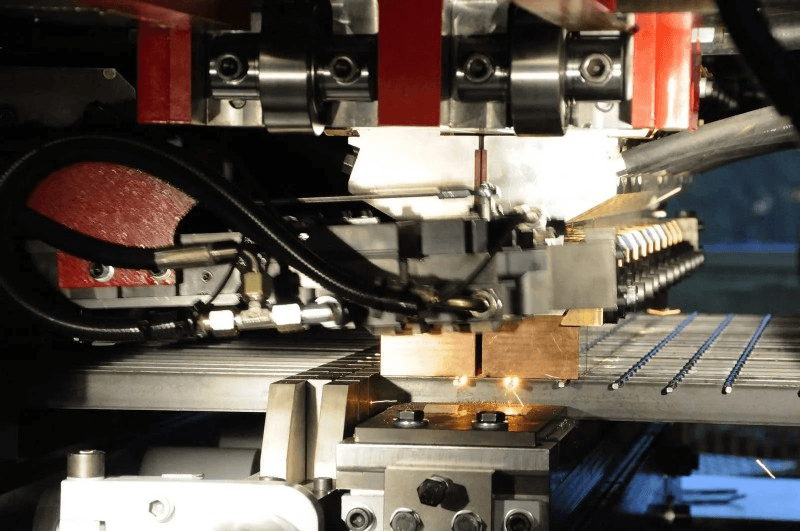

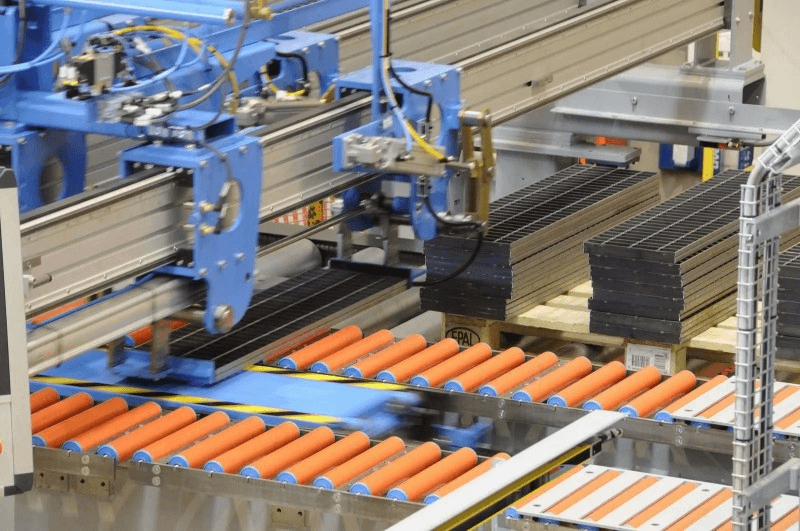

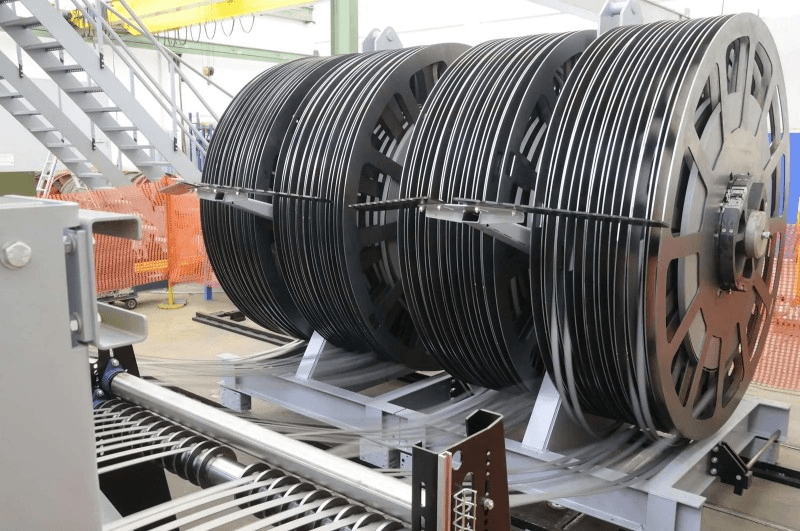

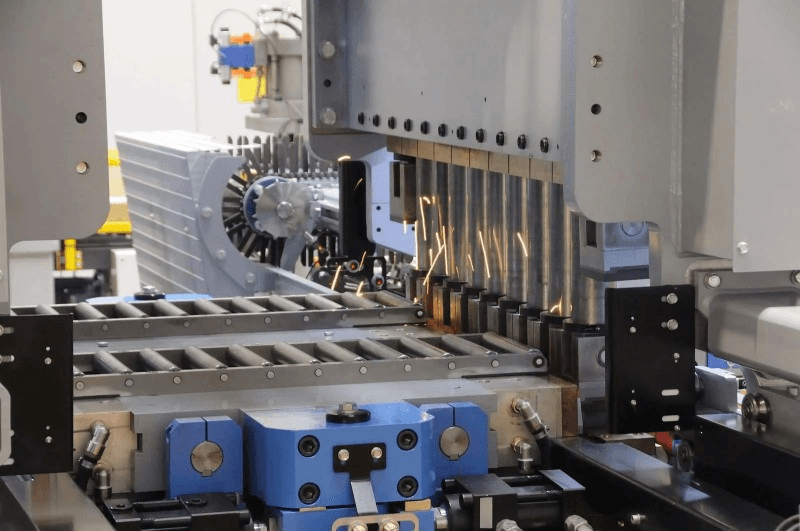

Welded Steel Grating Processing Equipment

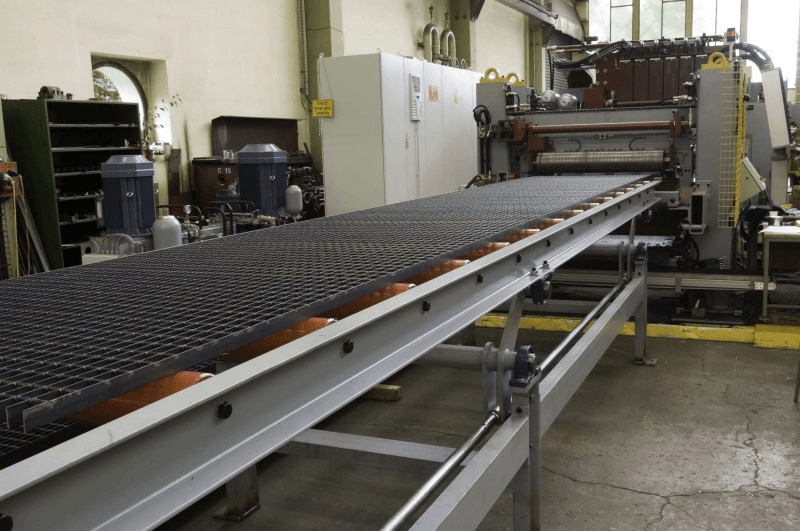

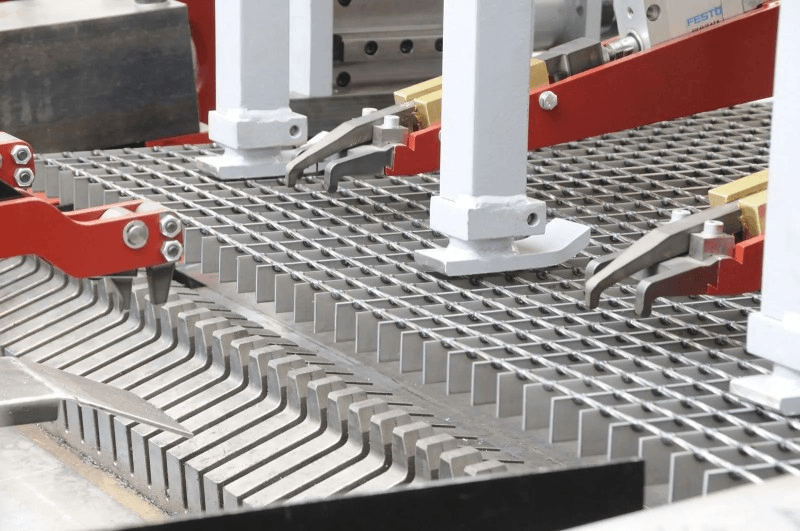

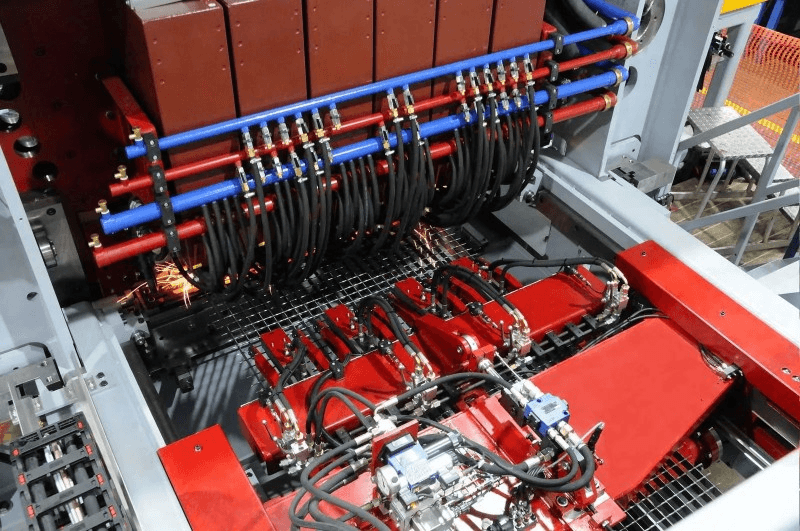

Welded Steel Grating Fabricate Equipment Grating Fabricate Equipment Bar Grating Fabricate Equipment Welded Steel Grating Fabricate Equipment

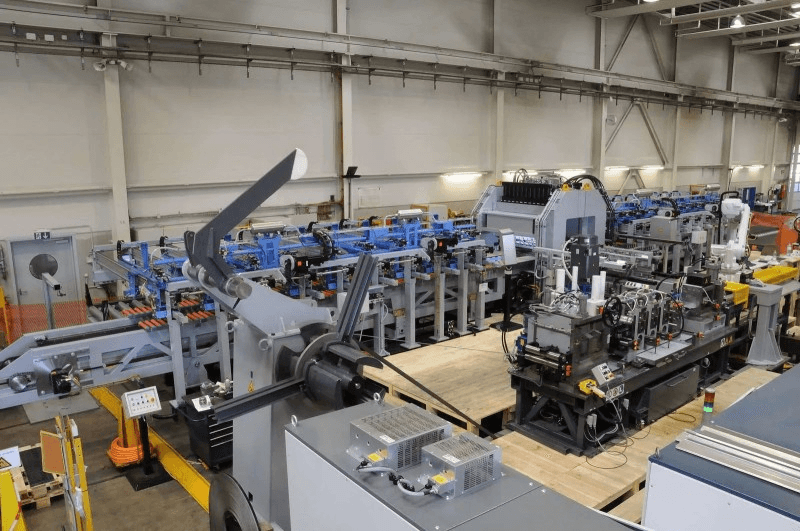

Grating Fabricate Equipment Welded Steel Grating Fabrication Equipment Welded Steel Grating Fabrication EquipmentABX Workshop
